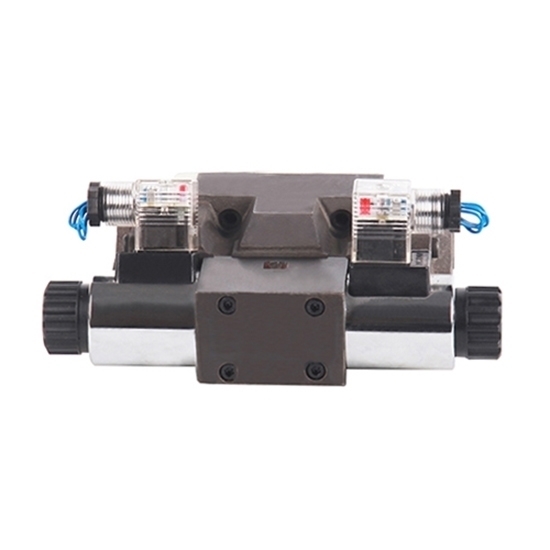

Hydraulic Solenoid Valve, 4 way, DC 24V

Write a review

$423.21

Cost-effective and high quality 24V DC hydraulic solenoid valve for sale online. NBR -30 ℃~ 80 ℃ or VITON -20 ℃~80 ℃ can be chosen. 4 way hydraulic solenoid valve is widely used in oil refining industry and petrochemical industry.

Orifice *
Fluid Temperature *
Hydraulic Oil *

SKU: ATO-HSV-D24

Qty:

30-day Returns

Free Shipping

Overview
Proposition 65 Warning

Note: This solenoid valve cannot be used for drinking water.

24V DC hydraulic solenoid valve is used to control the basic components of fluid automation, is a direction control valve, used to control the oil flow on or off or change the direction of the oil flow.

Specification:

Model	ATO-4WEH10E/J	ATO-4WEH16E/L/U/J	ATO-4WEH25E/L/J	ATO-4WEH32E/L/J
Orifice (mm)	10	16	25	32
Connect Type	plate link
Control Mode	electromagnetic control
Flow Direction	reversing
Nominal Pressure	28 MPa
Channel	4 way
Medium	oil
Material	cast iron
Voltage	DC 24V
Hydraulic Oil	mineral hydraulic oil / phosphate ester hydraulic oil
Fluid Temperature	NBR -30 ℃ ~ 80 ℃ / VITON -20 ℃ ~ 80 ℃
Standard	ISO9001

Hydraulic Solenoid Valve Structure:

Hydraulic solenoid valve structure

Dimension (Unit: mm)

Hydraulic solenoid valve dimension

Application:

Hydraulic solenoid valve application

Tips: Characteristics of Phosphate Ester Hydraulic Oil

Corrosion-resistant, water-containing refractory liquid contains a certain proportion of water and other substances.
Viscosive-temperature characteristics, viscosity stability and oil viscosity affect pump performance and efficiency.
Compatibility with materials, fire resistant hydraulic oil in the process of use, must choose a good compatibility of materials.
