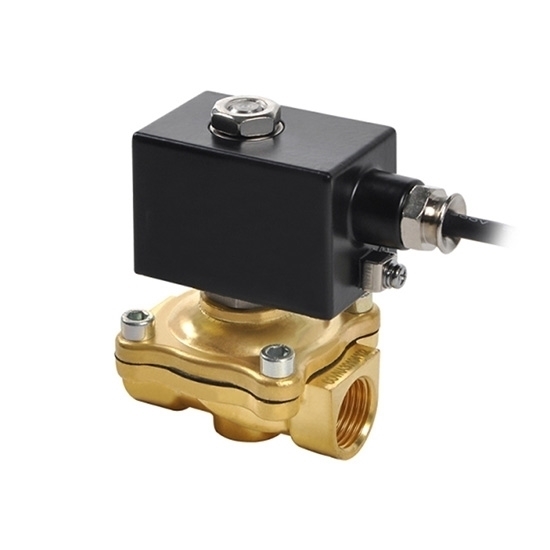

Explosion Proof Solenoid Valve, Brass, NO, DC 6V/12V/24V

5 out of 5 based on 1 reviews | Write a review

$349.21

High quality brass solenoid valve with cheap price for sale online. Explosion proof solenoid valve adopts direct lifting diaphragm construction. Pressure of NO solenoid valve between 0.0 MPa and 1.0 MPa. DC solenoid valve can be used for liquid and gas line switch control.

Voltage *
Fluid Temperature *
Port Size *
Port Size *

SKU: ATO-EPSV-BNOD

Qty:

30-day Returns

Free Shipping

Delivery date: 7-10 days

Overview

Explosion-proof solenoid valve can be used to close all parts of the equipment that may ignite explosive gas mixtures in a shell. Tolerance of brass solenoid valve is in the 10% range.

Specification:

Model	2WEX-10	2WEX-15	2WEX-20	2WEX-25	2WEX-32	2WEX-40	2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANCE
Voltage	DC 6V, 12V, 24V
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	brass
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

Explosion Proof Solenoid Valve NO Structure:

Explosion proof solenoid valve NO structure

Thread Connection Dimension (Unit: mm)

Explosion proof solenoid valve DN10-25 dimension

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Explosion proof solenoid valve DN32-50 dimension

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: What is VITON?

VITON is a synthetic polymer elastomer containing fluorine atoms on the carbon atoms of the main or side chains. The introduction of fluorine atoms gives rubber excellent heat resistance, oxidation resistance, oil resistance, corrosion resistance and atmospheric aging resistance, which has been widely used in aerospace, aviation, automobile, petroleum and household appliances and other fields.

Existing reviews of Explosion Proof Solenoid Valve, Brass, NO, DC 6V/12V/24V

Works great so far

Used this explosion proof brass NO solenoid valve to run a push button on a sprinkler valve air cannon for my kids. Works great so far. Running it off of a single 9V with a monetary switch, triggers just fine.

From: Hacoy | Date: 14/11/2022

Was this review helpful? Yes No (0/0)
