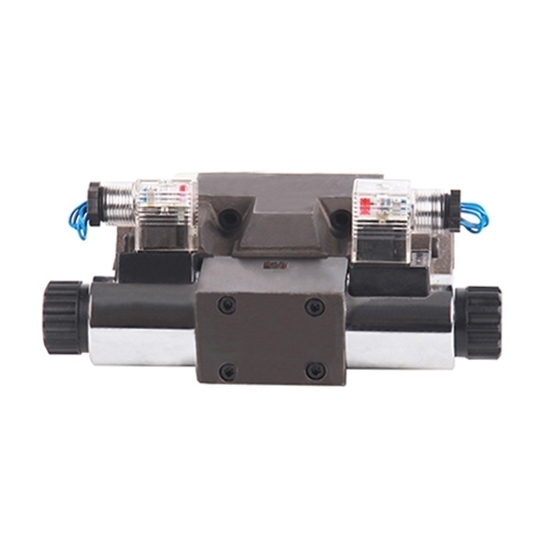

Hydraulic Solenoid Valve, 4 way, DC 12V

Write a review

$421.71

12V DC hydraulic solenoid valve with electromagnetic control for sale. Nominal press of solenoid operated DC valve is 28 MPa. Lightweight appearance and safe use are the characteristics of hydraulic solenoid valve. Mineral hydraulic oil and phosphate ester hydraulic oil can be chosen.

Orifice *
Fluid Temperature *
Hydraulic Oil *

SKU: ATO-HSV-D12

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Note: This solenoid valve cannot be used for drinking water.

System simplicity and easy maintenance are the advantages of hydraulic solenoid valve. 12V DC hydraulic solenoid valve is widely used in nuclear power industry and oil refining industry.

Specification:

Model	ATO-4WEH10E/J	ATO-4WEH16E/L/U/J	ATO-4WEH25E/L/J	ATO-4WEH32E/L/J
Orifice (mm)	10	16	25	32
Connect Type	plate link
Control Mode	electromagnetic control
Flow Direction	reversing
Nominal Pressure	28 MPa
Channel	4 way
Medium	oil
Material	cast iron
Voltage	DC 12V
Hydraulic Oil	mineral hydraulic oil / phosphate ester hydraulic oil
Fluid Temperature	NBR -30 ℃ ~ 80 ℃ / VITON -20 ℃ ~ 80 ℃
Standard	ISO9001

Hydraulic Solenoid Valve Structure:

Hydraulic solenoid valve structure

Dimension (Unit: mm)

Hydraulic solenoid valve dimension

Application:

Hydraulic solenoid valve application

Tips: How Does Hydraulic Solenoid Valve Work?

A hydraulic solenoid valve is a solenoid controlled directional valve used in a hydraulic system for opening, closing or changing the direction of flow of the liquid. The valve operates with a solenoid, which is an electric coil wound around a ferromagnetic core at its center. The solenoid is used for sliding the spool within the valve, opening or closing the ports.
