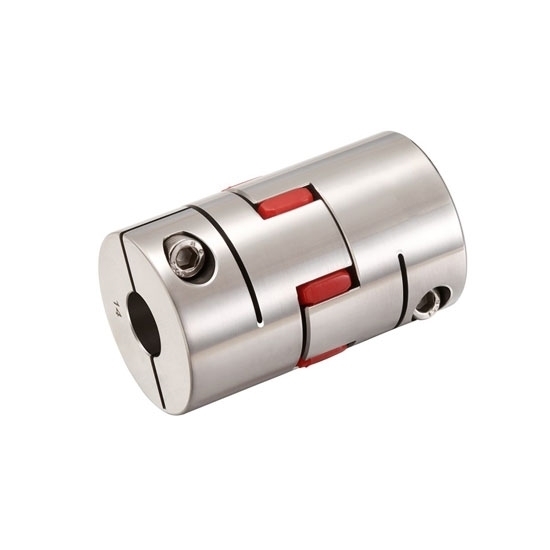

Curved Jaw Coupling, 25 x 34mm

Curved plum jaw coupling bore size 6mm to 16mm, ΦD2mm, L 34mm, detachable design, easy to install or DIY anything you want, the clamp coupling is light in weight and suitable for equipment running at medium and high speeds.

Specification

• Model: ATO-SC-GFCG-2534
• Rated Torque: 9 Nm
• Eccentricity Allowed: 0.02mm
• Bore: 5 to 12mm
• Allowable Declination: 1∠°
• Allowable Axial Deviation: ±0.60mm
• Allowable Speed: 16000rpm
• Static Torsional Stiffness: 65 Nm/rad
• Moment of Inertia: 5.2 x 10^-6 Nm
• Bushing Material: 304 Stainless steel
• Rubber Block Material: Polyurethane imported from Germany
• Surface Treatment: Polished
• Weight: 75g
• Certificate: ISO9001, REACH, RoHS
• Warranty: 12 Months

Jaw Coupling Dimension (unit: mm)

• d1/d2 Inner Diameter Size: 4-5-6-6.35-7-8-9-10-11-12
• ΦD: 25
• L: 34
• LF: 22.5
• LP: 11.6
• F: 5.6
• M: M4
• Tightening Torque: 3.5 Nm

Tips: Flexible jaw coupling structural features

• Intermediate elastomer connection.
• Can absorb vibration, compensate radial, angular and axial deviation.
• Oil resistance and electrical insulation.
• Clockwise and counterclockwise rotation characteristics are exactly the same.
• Fixing with positioning screws.
