    Curved Jaw Coupling, 35 x 50mm

    5 out of 5 based on 1 reviews | Write a review

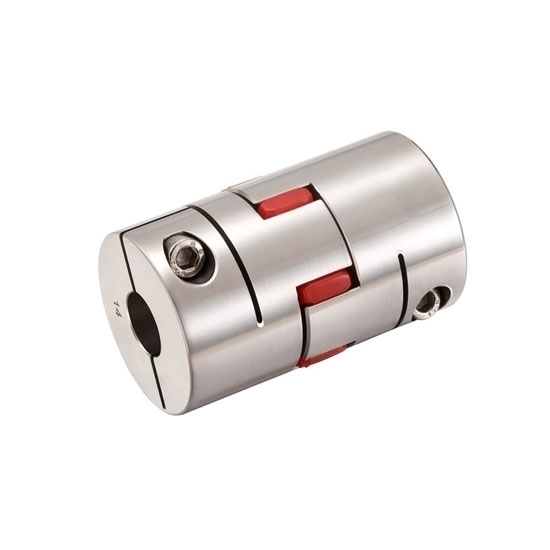

    Curved jaw coupling size 35mm x 50mm, bore 8mm to 19mm, large bearing capacity, long service life, compensation for the relative offset of the two axes, shock absorption, wear resistance, and buffering performance.
    SKU: ATO-SC-GFCG-3550
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Stainless steel 8mm to 19mm curved jaw coupling, corrosion resistant and high hardness, surface polishing, widely used in 3D printers, DIY encoders, CNC routers, machines, servo stepping motors, etc.


    • Model: ATO-SC-GFCG-3550
    • Rated Torque: 21 Nm
    • Eccentricity Allowed: 0.02mm
    • Bore: 8 to 19mm
    • Allowable Declination: 1∠°
    • Allowable Axial Deviation: ±0.60mm
    • Allowable Speed: 10000rpm
    • Static Torsional Stiffness: 200 Nm/rad
    • Moment of Inertia: 8.1 x 10-6 Nm
    • Bushing Material: 304 Stainless steel
    • Rubber Block Material: Polyurethane imported from Germany
    • Surface Treatment: Polished
    • Weight: 185g
    • Certificate: ISO9001, REACH, RoHS
    • Warranty: 12 Months

    30mm x 50mm Jaw Coupling Dimension (unit: mm)

    Plum coupling dimension

    • d1/d2 Inner Diameter Size: 5-6-6.35-7-8-9-10-11-12-12.7-14-15-16-17-18-19
    • ΦD: 35
    • L: 50
    • LF: 30
    • LP: 11.5
    • F: 6.5
    • M: M5
    • Tightening Torque: 8 Nm

    Tips: Safe use of coupling

    1. The coupling is not allowed to exceed the specified axis line skew and radial displacement, so as not to affect its transmission performance.
    2. The bolts of the coupling shall not be loose or damaged; the keys of the coupling shall be closely matched and shall not be loose.
    3. The gear coupling and the Oldham coupling should be lubricated regularly, and grease should be added once every 2 to 3 months, so as to avoid severe wear of the gear teeth and cause serious consequences.
    4. The contact length of the tooth width of the gear coupling shall not be less than 70%, and its axial movement shall not exceed 5mm.
    5. The coupling is not allowed to have cracks. If there are cracks, it needs to be replaced (it can be hit with a small hammer, and judged according to the sound).
    6. The tooth thickness of the gear coupling is worn. When the wear amount of the lifting mechanism exceeds 15% of the original tooth thickness, the running mechanism should be scrapped when it exceeds 25%, and it should be scrapped when there are broken teeth.
    7. If the elastic ring of the pin coupling and the sealing ring of the gear coupling are damaged and aged, they should be replaced in time.
