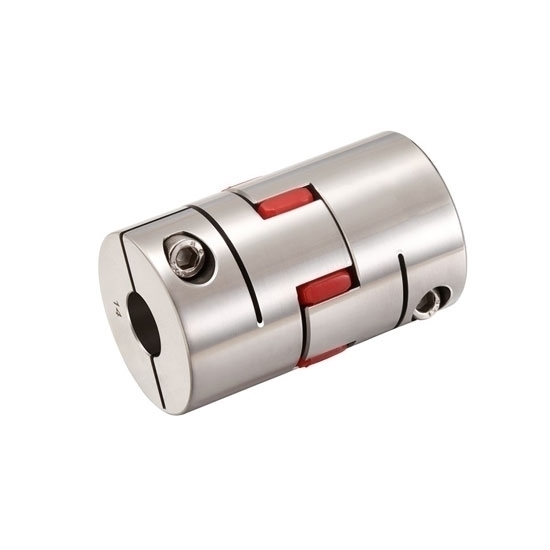

Curved Jaw Coupling, 40 x 66mm

Plum clamp coupling bore size 0.3 inch to 0.9 inch, diameter 0.3 inch, length 2.5 inch, suitable for connecting two coaxial transmission shafts, with compensation for the relative offset of the two shafts, shock absorption, wear resistance and buffering performance.

Specification

• Model: ATO-SC-GFCG-4066
• Rated Torque: 48 Nm
• Eccentricity Allowed: 0.02mm
• Bore: 8 to 24mm
• Allowable Declination: 1∠°
• Allowable Axial Deviation: ±0.60mm
• Allowable Speed: 10000rpm
• Static Torsional Stiffness: 550 Nm/rad
• Moment of Inertia: 3.9 x 10^-5 Nm
• Bushing Material: 304 Stainless steel
• Rubber Block Material: Polyurethane imported from Germany
• Surface Treatment: Polished
• Weight: 380g
• Certificate: ISO9001, REACH, RoHS
• Warranty: 12 Months

40 x 60mm Plum Coupling Dimension (unit: mm)

• d1/d2 Inner Diameter Size: 6-6.35-7-8-9-10-11-12-12.7-14-15-16-17-18-19-20-22-24
• ΦD: 40
• L: 66
• LF: 39.1
• LP: 13.1
• F: 8
• M: M5
• Tightening Torque: 8 Nm
