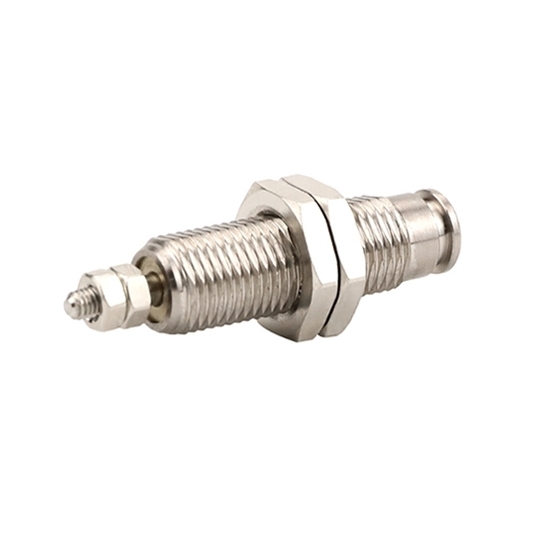

    Mini Needle Cylinder, Single Acting

    5 out of 5 based on 1 reviews | Write a review
    Mini needle cylinder for sale, cylinder bores available in 6 mm, 10 mm and 15 mm, stroke options 5 mm, 10 mm and 15 mm. The single-acting cylinder is easy to control, and the rear intake pipe is convenient and soft without impact. The ATO mini bolt cylinder comes in an attractive shape and makes it easy to carry and use.
    This product has a minimum quantity of 10
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    The mini pin cylinder uses air pressure to push the piston rod and is generally used for positioning devices. The needle cylinder has a solid brass body for durability. Single acting bolt cylinders are available with strokes of 5 mm, 10 mm and 15 mm and bore sizes of 6 mm, 10 mm and 15 mm.


    Model ATO-CJPB
    Bore 6mm 10mm 15mm
    Working Medium Air
    Actuation Mode Single acting - spring return
    Maximum Operating Pressure 0.7 Mpa
    Minimum Operating Pressure 0.2 Mpa 0.15 Mpa
    Ambient and Fluid Temperature -10~70°C (but not freezing)
    Buffer None
    Use Piston Speed 50~500mm/s
    Stroke Tolerance +1.0mm
    Grease Is not required
    Port Size M5*0.8 (panel type)

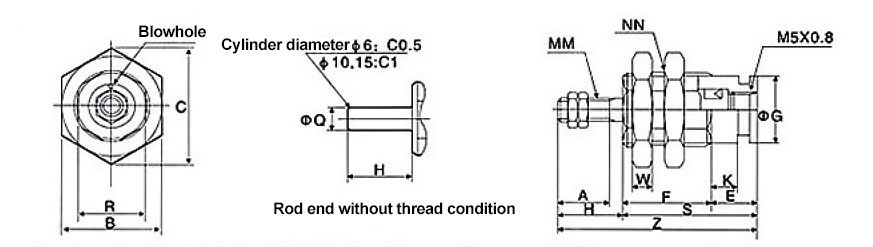

    Dimension (Unit mm)

    Mini needle cylinder dimension

    Bore A B C E F G H K MM NN R S W Z O
    5st 10st 15st 5st 10st 15st 5st 10st 15st
    6 7 12 13.9 6 12.5 19.5 26.5 6.5 9 3.5 M3x0.5 M10x1.0 9 18.5 25.5 32.5 3 27.5 34.5 41.5 3
    10 10 19 22 6 14.5 21 28 12 12 3.5 M4x0.7 M15x1.5 13 20.5 27 34 4 32.5 39 46 5
    15 12 27 31 7 16.5 22.5 29 19 14 4.2 M5x0.8 M22x1.5 20 23.5 29.5 36 5 37.5 43.5 50 6

    Tips: What are the 2 types of rotary cylinders?

    Vane type rotary cylinder:  through the internal stop block or external block to change its swing angle. Stop block and cylinder body are fixed together, and the blade and the shaft are connected together. The pneumatic pressure acts on the blade to drive the rotating shaft and output torque.

    Geared rotary cylinder:  pneumatic pressure pushes the piston to drive the rack to do linear movement, the rack drives the gear to do rotary movement, and there is a gear shaft output torque that drive the external load swing.
