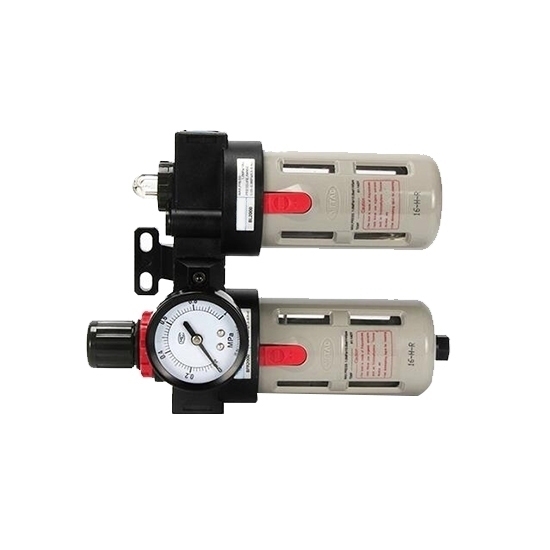

    1/2” Air Filter & Regulator FRL Combination Unit

    $60.35
    The 1/2" compressed air filter and regular FRL combination unit with 90CC big bowl is easy to operate and has stable performance and strong anti-interference ability.
    SKU: ATO-AFR-1/2
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Feature

    The 1/2" air  filter and regular FRL combination unit with delicate and compact structure, which is convenient for installation and application.
    The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
    The pressure loss is low and the efficiency of the 1/2" compressed oil-water separator is high.
    The quantity of oil dripping can be directly observed through transparent checkdome.
    In addition to standard type, lower pressure type is optional ( The highest adjustable pressure is 0.4MPa ).

    Specification

    Model ATO-BFC4000
    Fluid Air
    Port size 1/2"
    Filtering grade 40 μm or 50 μm
    Pressure range Semi-auto and automatic drain: 0.15-0.9 mpa ( 20-130 psi ) manual drain: 0.05-0.9 mpa ( 7-130 psi )
    Max.pressure 1.0 mpa ( 145 psi )
    Proof pressure 1.5 mpa ( 215 psi )
    Temperature range -5~70 ℃
    Capacity of drain bowl 60 CC
    Capacity of oil bowl 90 CC
    Recommended lubricant ISO VG 32 or equivalent
    Weight 700 g

    Selection table

    Drain type Semi-auto drain
    Manual drain
    Pressure gauge Pressure gauge
    No pressure gauge
    Scale 1 mpa 2 psi 3 bar 4 kgf/cm² & psi
    Filtering grade 40 μm
    5 μm
    Thread type PT ( scale: mpa or kgf/cm² & psi )
    G ( scale: bar )
    NPT ( scale: psi )
    1-4” air filter and regulator   No. ltem
    1 B Series filter & regulator
    2 B Series bracket
    3 B Series gasket
    4 B Series fixed kit
    5 screw
    6 B Series lubricator



     Pressure and feature of flow

    air filter & regulator FRL combination unit

    Dimension(Unit: mm)

    air filter & regulator FRL combination unit

    Tips

    The device must be installed correctly, and qualified operators must be commissioned and maintained in accordance with the operating instructions to make it operate safely.
    Failure to close the isolation valve during installation and maintenance will cause damage to the components of the system and cause harm to the human body. The danger also includes: the protection device and the ventilation pipe or the alarm system are closed. Ensure that the isolation valve is closed to avoid the impact of the system.
    Pressure: When maintaining and repairing, consider whether there is a medium in the oil-water separator pipeline. Make sure that the pressure medium has been isolated and the safety airway has been open to the atmosphere. This can be solved by installing a drain valve, even if the pressure gauge indicates zero. Don't think that the system is drained.
    Temperature: After closing the isolation valve, there should be a period of time to make the operating part close to normal temperature to avoid burns.
    Disposal: The product can be recycled. Properly handled will not cause ecological problems.
