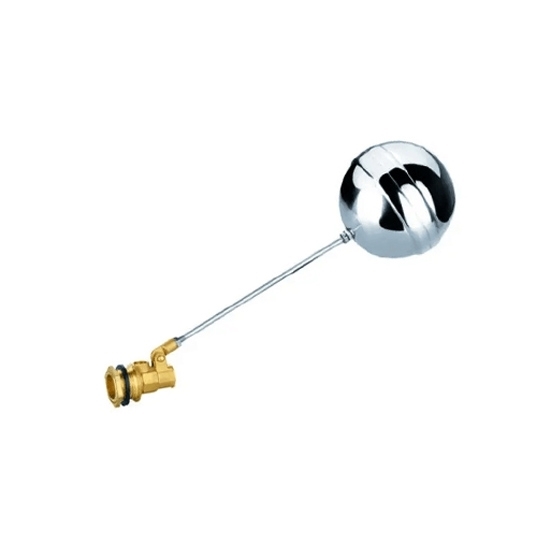

1/2 inch Float Valve for Water Tank

Buy a 1/2" (DN15) stainless steel float valve for water tank. Small float valve is used in storage tanks to regulate water level, suitable for residential, commercial and industrial environments where a reliable and continuous water supply is required.

Specifications

• Model: ATO-SS10080
• Nominal Diameter: 1/2 inch (DN15)
• Normal Pressure: 0.4MPa≤PW≤0.6MPa
• Connection Method: G Thread
• Working Medium: Water
• Working Temperature: 0°C≤T≤60°
• Material: Brass and Stainless Steel

Dimension (Unit: mm)

Applications

Water tank float valve is specifically designed for use in water storage tanks to regulate the water level, typically used in residential, commercial, and industrial settings where a reliable and consistent water supply is required, also used in irrigation systems, livestock waterers, and fire protection systems.

Tips: What is a float valve?

A float valve is a type of valve used to control the level of a liquid in a container or reservoir. It typically consists of a valve body, a float, and a lever mechanism. The valve body is installed in the container or reservoir, and the float is connected to the lever mechanism. As the liquid level rises or falls, the float moves up or down, and this movement is transmitted to the lever mechanism, which opens or closes the valve to regulate the flow of liquid into or out of the container. Float valves are commonly used in applications such as toilets, water tanks, and industrial tanks to maintain a desired level of liquid.
