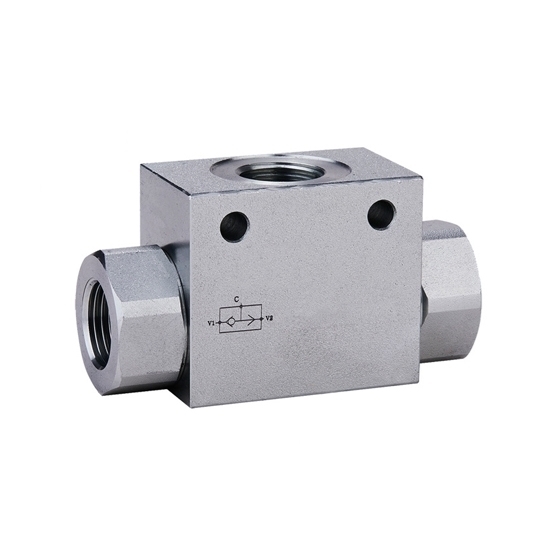

    G1/2" Hydraulic Shuttle Valve, 3 Way

    Buy hydraulic shuttle valve online at an economical price, G1/2 inch thread port, body material of stainless steel and carbon steel available. This 3 way shuttle valve is a type of valve used in hydraulic systems to control the flow of fluid in two separate circuits. It allows fluid to flow from one inlet to either of two outlet, depending on the pressure conditions in the system.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hydraulic shuttle valves are commonly used in various hydraulic systems, such as in mobile equipment, industrial machinery, and aircraft hydraulic systems, where the ability to switch between hydraulic circuits or isolate them is necessary for proper operation. They provide a simple and reliable means of controlling hydraulic fluid flow in these applications.


    • Model: ATO-VUSF-G1/2
    • Shuttle Valve Type: 3 Way
    • Body Material (Optional): Stainless Steel or Carbon Steel
    • Connection Thread Port: G1/2 inch (DN13)
    • Max. Pressure: 350bar
    • Max. Flow: 80L/min
    • Operating Temperature Range: +40℃~+70℃
    • Ambient Temperature: -20℃~+60℃

    Dimension (Unit: mm)

    Hydraulic shuttle valve dimension

    Model DN L L1 C D E F G I J SW
    ATO-VUSF-G1/2 13 90 57 35 50 32.5 8.5 G1/2" 36 6.5 32

    Tips: What are the advantages of hydraulic shuttle valves?

    Hydraulic shuttle valves offer several advantages in hydraulic systems. Firstly, they provide directional control, allowing selective routing of hydraulic fluid based on specific conditions or signals. This versatility enables efficient operation and control of hydraulic actuators, motors, and other components. Secondly, hydraulic shuttle valves typically have a compact design, making them suitable for applications with limited space constraints. Their small footprint facilitates integration into complex hydraulic systems without sacrificing performance. Additionally, hydraulic shuttle valves offer reliable operation when properly maintained, ensuring consistent fluid flow management over extended periods. Their robust construction and compatibility with various hydraulic fluids and pressures further enhance their reliability and suitability for a wide range of applications. Overall, the advantages of hydraulic shuttle valves include directional control, compact design, and reliable operation, making them indispensable components in many hydraulic systems.
