1/2" Automatic Water Level Control Valve

5 out of 5 based on 1 reviews | Write a review
$49.84

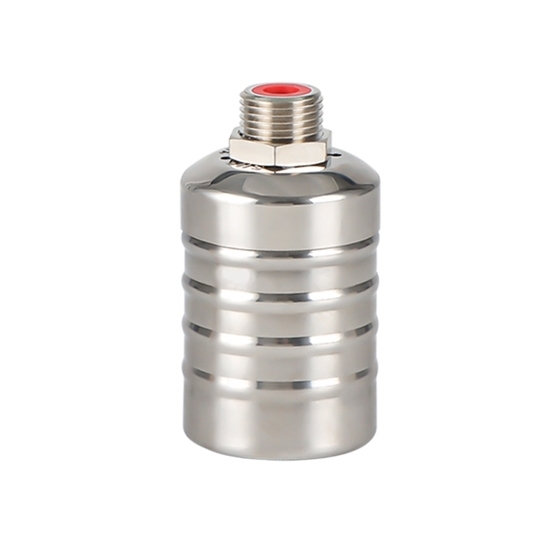

Low price 1/2 inch automatic water level control valve is designed to regulate and maintain a constant water level in a reservoir, tank, or other water storage system without manual intervention. Fully automatic water level float valve, 304 stainless steel body, thread connection. Water inlet direction upward or side, narrow side or wide side mounting bracket for selection.
*
*
SKU: ATO-SSFV-1/2
30-day Returns
Free Shipping
Delivery date: 6-12 days

ATO 1/2" stainless steel float valve is a fully automatic water level control valve equipped with thread connection, water inlet direction above/side, and narrow side/wide side mounting bracket, usually used in industrial processes, agricultural irrigation, domestic water supply systems, etc.

Specifications

  • Model: ATO-y6-1/2
  • Connection Method: 1/2" Thread G
  • Nominal Diameter: DN15
  • Connector Size: 20mm
  • Valve Body Material: 304 Stainless Steel
  • Water Entrance Direction: Above or Side
  • Fixed Bracket: Narrow Side or Wide Edge Mounting Bracket
  • Applicable Temperature: 0~100°C
  • Pressure Range: 0.2~8kg
  • Screw Material: 304 Stainless Steel

Fixed Bracket Selection

Stainless steel float valve bracket

Details

Stainless steel float valve details

Applications

Water tank float valve applications

Tips: What is an automatic water level control valve?

An automatic water level control valve is a device designed to regulate and maintain a consistent water level in a reservoir, tank, or other water storage system without the need for manual intervention. It operates by sensing the water level and adjusting the flow of water accordingly to achieve the desired level. These valves are commonly used in various applications such as industrial processes, agricultural irrigation, and domestic water supply systems.

The valve typically consists of a float mechanism that moves up and down with the changing water level. As the water level rises or falls, the float triggers the valve to open or close, controlling the inflow or outflow of water. Some automatic water level control valves are equipped with additional features such as adjustable settings, pressure relief mechanisms, and anti-clogging components to enhance their efficiency and reliability.

These devices play a crucial role in preventing overflow or depletion of water in a system, thereby ensuring optimal water management. They contribute to resource conservation, reduce the need for constant manual monitoring, and enhance the overall efficiency of water distribution systems in diverse settings.

Existing reviews of 1/2" Automatic Water Level Control Valve
Automatic adjustment
This 1/2" automatic water level control valve is easy to install and debug, can accurately control the water level, quickly replenish water and close tightly without leakage. The material is durable and there is no sign of aging after using it for a period of time.
From: Nash | Date: 23/03/2025
Was this review helpful? Yes No (0/0)
