    1/6 hp Piston Air Motor, 1000 rpm, 211 L/min

    5 out of 5 based on 1 reviews | Write a review
    $505.87

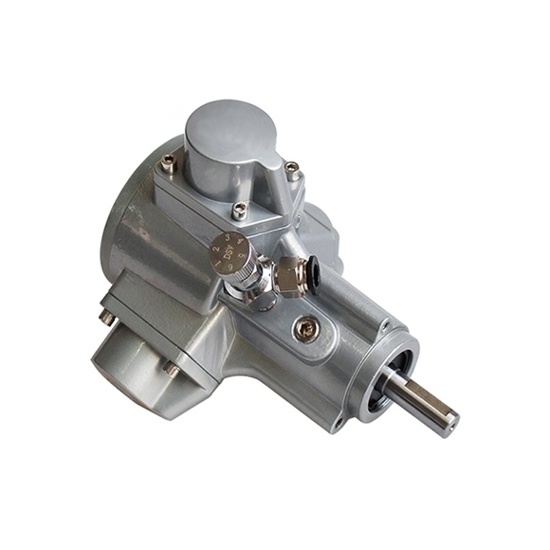

    Economical price piston type air motor with rated power 1/6 hp, 211 L/min air consumption, 1000 rpm rated speed, rated torque 0.84 Nm, basic type, lange type and foot type three installation types can be chosen. The pneumatic piston motor offers low noise, high quality, small size, light weight, easy operation and long service life.
    SKU: ATO-DAM2
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Good price piston air motor with starting torque 1 Nm, stopping torque 1.7 Nm, 1:1 gear ratio. The pneumatic piston motor is mainly used in mining machinery, and it can be used as drive motors for conveyor belts, etc.

    Specification

    Model ATO-DAM2
    Power 1/6 hp
    Gear ratio 1:1
    Rated speed 1000 rpm
    Rated torque 0.84 Nm
    Max. no-load speed 2000 rpm
    Air consumption 211 L/min
    Starting torque 1 Nm
    Stopping torque 1.7 Nm
    Mounting type Basic type/ lange type/ foot type
    Certificate CE
    Warranty 12 months

    Dimension

    Basic type

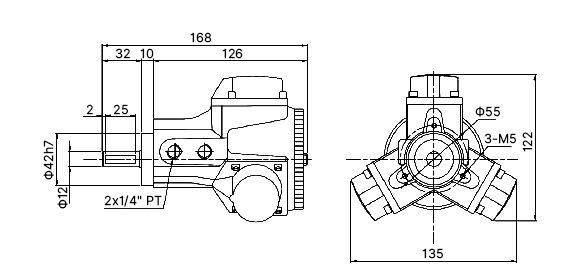

    Dimension of basic type of piston air motor

    Lange type

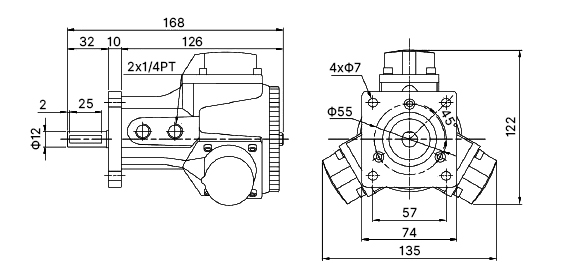

    Dimension of lange type of piston air motor

    Foot type

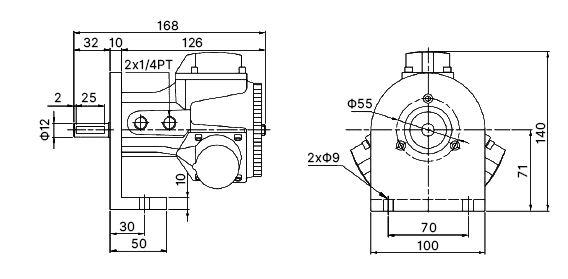

    Dimension of foot type of piston air motor

    Model Dimension (mm)
    A1 A2 A3 A4 B C C1 D E F G H J M N M1 N1 M2 N2 Q Q1 P
    ATO-DAM2 168 135 122 140 126 12 55 10 2 32 M5 42h7 25 74 57 100 70 50 30 7 9 71

    Tips: Working Principle of Piston Air Motor.

    The schematic diagram of the structure of a piston type air motor is a pneumatic motor that converts the linear motion of several pistons into a rotary motion through a crank or a swash plate. Its structure has two kinds of radial piston type and axial piston type.

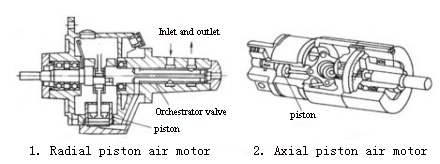

    Figure 1 shows the structural principle of the most common radial piston air motor. The working chamber is composed of pistons and cylinders. Three to six cylinders are distributed radially around the crankshaft, and each cylinder is connected to the crankshaft through a connecting rod. The compressed air distribution valve supplies air to each cylinder in sequence, and the compressed air pushes the piston to move and drives the crankshaft to rotate. When the valve is turned to a certain angle, the remaining air in the cylinder is discharged through the exhaust port. Changing the direction of intake and exhaust can realize the forward and reverse conversion of the air motor.
    Figure 2 shows the structural principle of an axial piston air motor. Cylinders are evenly distributed in the axial direction. The pistons of the cylinders make reciprocating linear motions in turn under the action of the input compressed air, and the linear motion is transformed into the rotary motion of the output shaft through the action of the swash plate.

    Working principle of piston air motor
