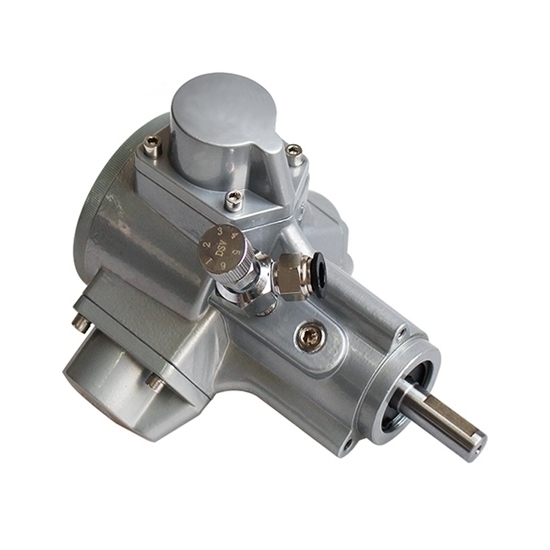

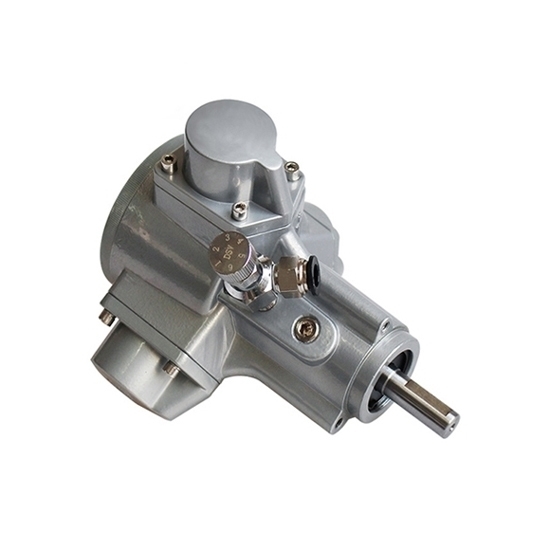

Sell piston air motor at low price, the piston type air motor with starting torque 2.61 Nm, stopping torque 3.92 Nm, free shipping and 12 months warranty. The pneumatic piston motor is widely used as drive motors for conveyor belts, etc.
Specification
Model |
ATO-DAM4 |
Power |
1/3 hp |
Gear ratio |
1:1 |
Rated speed |
900 rpm |
Rated torque |
2.16 Nm |
Max. no-load speed |
1800 rpm |
Air consumption |
267 L/min |
Starting torque |
2.61 Nm |
Stopping torque |
3.92 Nm |
Mounting type |
Basic type/ flange type/ foot type |
Certificate |
CE |
Warranty |
12 months |
Dimension
Basic type
Flange type
Foot type
Model |
Dimension (mm) |
A1 |
A2 |
A3 |
A4 |
B |
C |
C1 |
D |
E |
F |
G |
H |
J |
M |
N |
M1 |
N1 |
M2 |
N2 |
Q |
Q1 |
P |
ATO-DAM4 |
204 |
166 |
142 |
160 |
158 |
14 |
62 |
10 |
4 |
39 |
M6 |
48h7 |
26 |
86 |
65 |
100 |
70 |
50 |
30 |
9 |
9 |
71 |
Details
Tips: The Differences between Piston Air Motor and Motor.
1. The structure of piston air motor is simple, and the service life of the air motor is extremely long.
2. Not affected by the external environment, even in harsh environments such as water, dust, humidity, and dirt, because the internal pressure of the air motor is greater than the external pressure when it is running.
3. Safety, explosion-proof, air motor does not produce sparks, overheating, explosion, short circuit (electricity) and other dangerous factors, especially suitable for environments with flammable and explosive substances or high temperature, such as stirring of solvents, paints, chemicals, etc.
