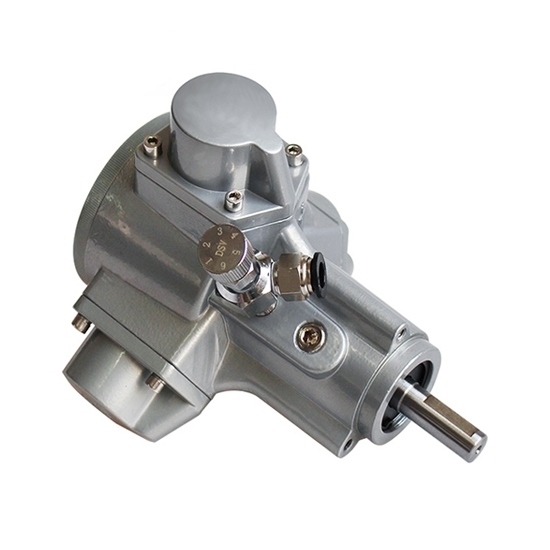

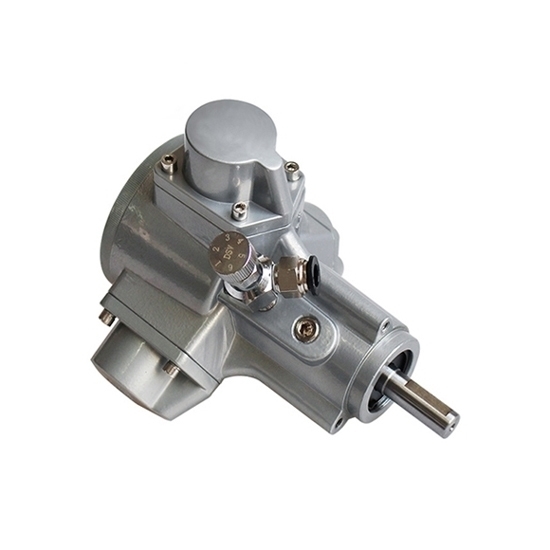

1/8 hp Piston Air Motor, 1100 rpm, 0.637 Nm

Designed for compact pneumatic drive applications, this piston air motor provides stable 1100 rpm operation with 0.637 Nm rated torque and 0.686 Nm starting torque. It operates at 0.7 MPa and is available with basic, flange or foot mounting to fit different machine configurations.

Specification

Best For

• Small Conveyors: For light-duty conveyor and material transfer systems requiring compact pneumatic drive power.
• Compact Machinery: Suitable for small industrial machines where installation space and motor size are important.
• Light-Duty Pneumatic Drives: A practical choice for applications requiring moderate speed and relatively low output torque from a compressed-air power source.
• Equipment with Flexible Mounting Needs: Basic, flange, and foot mounting options support different machine layouts and installation requirements.

Not Recommended For

• Heavy-Load or High-Torque Drives: The 0.637 Nm rated torque is not intended for heavy conveyors, large mixers, hoists or other high-load equipment.
• High-Power Machinery: Applications requiring substantially more than 1/8 hp should use a higher-power piston air motor with greater rated and starting torque.
• Precision Constant-Speed Applications: Air motor speed can vary with air pressure and load, so this model is not ideal where tightly regulated constant speed is required.

Size (unit: mm)

Basic type

Flange type

Foot type

Details

Tips: How to Install a 1/8 HP Piston Air Motor?

To install a 1/8 HP piston air motor, securely mount the piston air motor on a rigid surface and align the motor shaft with the driven equipment. Use properly sized air tubing and fittings for the compressed air supply, and check all pneumatic and mechanical connections for leaks or looseness. Before applying the load, run the 1/8 HP air motor without load to verify the rotation direction and ensure smooth operation.
