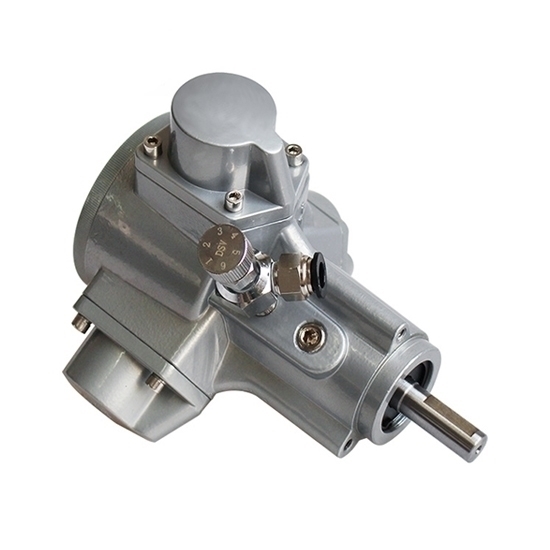

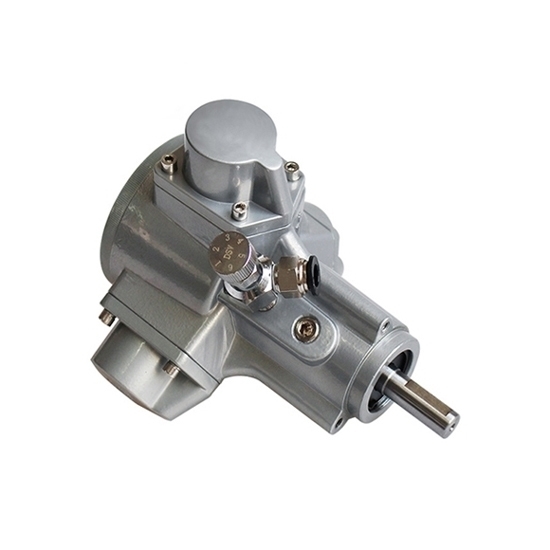

    3/4 hp Piston Air Motor, 700 rpm, 507 L/min

    5 out of 5 based on 1 reviews | Write a review
    $1,098.41
    Competitive price piston air motor with air consumption 397 L/min, rated power 3/4 hp, 750 rpm rated speed, rated torque 4.4 Nm, gear ratio 1:1, basic type/ flange type/ foot type for selection. Cheap pneumatic piston motor is mainly used in mining machinery.
    *
    SKU: ATO-DAM6
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price piston air motor with max. no-load speed 1400 rpm, starting torque 6.28 Nm, stopping torque 7.84 Nm. Lower cost pneumatic piston motor offers low noise, light weight and long service life advantages.

    Specification

    Model ATO-DAM6
    Power 3/4 hp
    Gear ratio 1:1
    Rated speed 700 rpm
    Rated torque 4.4 Nm
    Max. no-load speed 1400 rpm
    Air consumption 507 L/min
    Starting torque 6.28 Nm
    Stopping torque 7.84 Nm
    Mounting type Basic type/ flange type/ foot type
    Certificate CE
    Warranty 12 months

    Dimension

    Basic type

    Dimension of basic type of piston air motor

    Flange type

    Dimension of lange type of piston air motor

    Foot type

    Dimension of foot type of piston air motor

    Model Dimension (mm)
    A1 A2 A3 A4 B C C1 D E F G H J M N M1 N1 M2 N2 Q Q1 P
    ATO-DAM5 237 196 190 195 175 16 80 14 4 46 M6 62h7 30 106 80.5 130 100 70 42 9 9 95



    Details

    700rpm Piston Air Motor Details

    Tips: Faults and Troubleshooting Methods of Piston Air Motor.

    Insufficient output speed, insufficient power.
    1. Reason analysis.
    (1) The valve is installed reversely.
    (2) Wear of cylinder and piston ring.
    (3) Low air pressure.
    (4) The inlet pipe and accessories have too small diameter, which is severely blocked or blocked.
    (5) Poor exhaust.
    2. Elimination method.
    (1) Reinstall.
    (2) Replace parts.
    (3) Adjust the pressure.
    (4) Check the pipeline and its accessories to ensure that the diameter meets the requirements.
    (5) Check the main and auxiliary exhaust pipes to ensure that the diameter of the exhaust pipe and the diameter of the intake pipe meet the requirements.

    Existing reviews of 3/4 hp Piston Air Motor, 700 rpm, 507 L/min
    Best way to connect the supply air
    I have an ATO-DAM6 motor. What would be the best way to connect the supply air for maximum output torque? I need to operate the motor in both directions.
    From: Xzavier | Date: 16/07/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The rated output torque of this ATO-DAM6 motor is 4.4Nm. What is the maximum torque you want to output? If you want to operate the motor in both directions, you can use a reversing valve to switch the inlet and outlet air sources.
