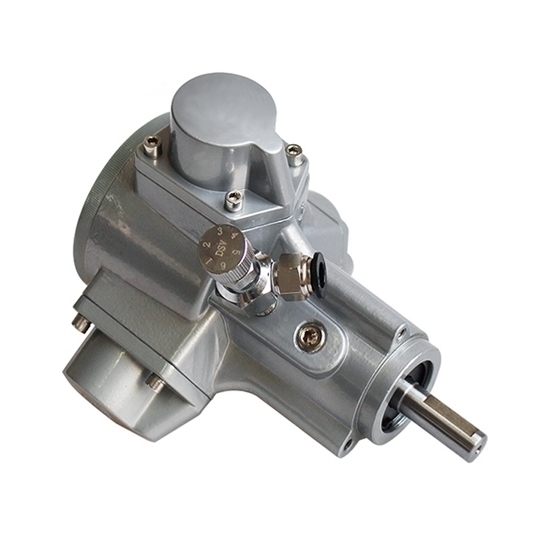

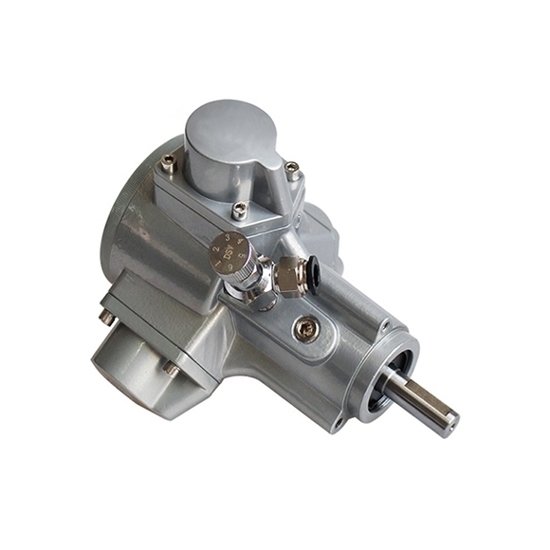

    1/2 hp Piston Air Motor, 750 rpm, 397 L/min

    5 out of 5 based on 1 reviews | Write a review
    $1,029.37
    1/2 hp piston air motor for sales at affordable price. The piston type air motor with air consumption 397 L/min, 750 rpm rated speed, rated torque 2.94 Nm, gear ratio 1:1, basic type/ lange type/ foot type for selection. Factory price pneumatic piston motor is mainly used in mining machinery.
    SKU: ATO-DAM5
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Good price piston air motor with max. no-load speed 1500 rpm, starting torque 4.71 Nm, stopping torque 5.88 Nm, free shipping and manufacturer direct sale. Cheap pneumatic piston motor offers low noise, light weight and long service life advantages.

    Specification

    Model ATO-DAM5
    Power 1/2 hp
    Gear ratio 1:1
    Rated speed 750 rpm
    Rated torque 2.94 Nm
    Max. no-load speed 1500 rpm
    Air consumption 397 L/min
    Starting torque 4.71 Nm
    Stopping torque 5.88 Nm
    Mounting type Basic type/ lange type/ foot type
    Certificate CE
    Warranty 12 months

    Dimension

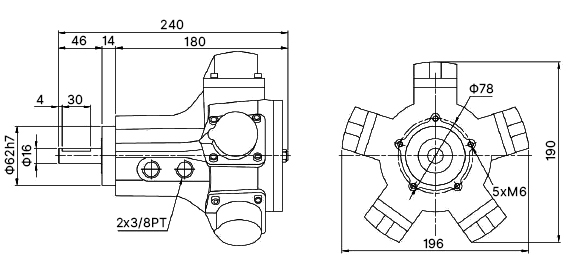

    Basic type

    Dimension of basic type of piston air motor

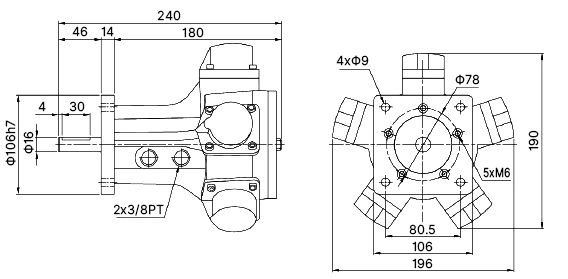

    Lange type

    Dimension of lange type of piston air motor

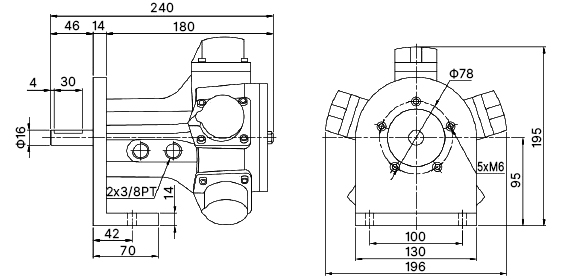

    Foot type

    Dimension of foot type of piston air motor

    Model Dimension (mm)
    A1 A2 A3 A4 B C C1 D E F G H J M N M1 N1 M2 N2 Q Q1 P
    ATO-DAM5 237 196 190 195 175 16 80 14 4 46 M6 62h7 30 106 80.5 130 100 70 42 9 9 95

    Tips: Faults and Troubleshooting Methods of Piston Air Motor.

    Suddenly slow down or not rotate during operation.
    1. Reason analysis.
    (1) Poor lubrication.
    (2) The valve is stuck and burned.
    (3) The crankshaft, connecting rod, and bearing are damaged.
    (4) The cylinder screw is loose.
    (5) The gas valve is blocked and desoldered.
    2. Elimination method.
    (1) Refueling.
    (2) Replacement.
    (3) Tighten.
    (4) Resoldering.
