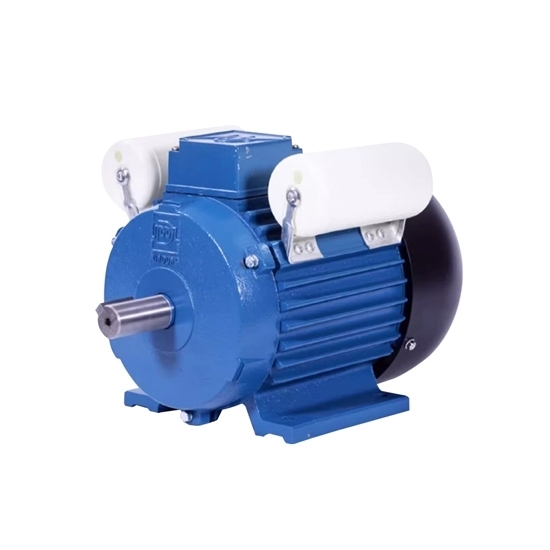

1 hp (0.75kW) 220V Single Phase AC Induction Motor

5 out of 5 based on 1 reviews | Write a review

$402.46

Low price single phase motor is widely used in home appliances, offices, stores and small non-industrial companies. 750W 1 hp single phase motor price is low. Speed 1500rpm/3000rpm, voltage 220V/110V/230V/240V and frequency 50/60 Hz for selection. Single phase induction motor with two ac capacitors ( start capacitor and run capacitor) can provide zero starting torque during operation.

Voltage (V) *
Speed *

SKU: ATO-SPM-750

Qty:

30-day Returns

Free Shipping

Delivery date: 20-30 days

Overview
Related Video

Hot selling 1 hp 220V single phase motor with a start capacitor and run capacitor, 110V/230V/240V is available. 1500rpm/3000rpm for selection. 0.75kW AC 1 phase motor works at 50/60 Hz and provides zero starting torque at rest, perfect for drills, air conditioners, compressors, pumps, cranes, garage door opening and closing systems.

Specifications

Model	ATO-YL801-2	ATO-YL711-4
Rated Output	0.75kW (1hp)
Efficiency	72%	71%
Power Factor	0.92 COSφ
Rated Speed	2800rpm	1400rpm
Rated Current	4.93A	4.99A
Pole	2 Pole	4 Pole
Voltage	220V AC 50Hz (Default), other customizations can be customized.
Tmax/Tn	1.8 times
Ts/Tn	1.8 times
ls/ln	29 times	29 times

Dimension (Unit: mm)

Frame Size	Mounting Dimension									Overall Dimension
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	AE	HD	L
71	112	90	45	14	30	5	11	71	7	145	145	140	105	180	255
80	125	100	50	19	40	6	15.5	80	10	160	165	150	120	200	295

Details

Tips: What is the role of the capacitor in the single phase motor circuit?

Since the single phase motor has only one-phase alternating current, although the magnetic field is also rotating, there is no starting torque, which causes the motor to fail to rotate after being energized. It needs an external force to start the rotor. Therefore, people use the characteristics of the capacitor to change the original alternating current by a phase difference and connect it to a starting coil in the motor to generate a starting torque so that the motor can rotate. It can be said that this capacitor plays the role of starting, also called the starting capacitor.
