1 Phase 1 hp (750W) Regenerative Blower, 220V, 85 cfm

5 out of 5 based on 1 reviews | Write a review
$646.88
ATO 1 hp (750W) high pressure air blower has competitive price. It is single phase blower with 145 m³/ h (85 cfm) maximum airflow capacity, -160 mbar rated vacuum pressure, 160 mbar rated compress pressure. The chassis is made of high-quality aluminum alloy by one-time die-casting, attractive and durable.
SKU: ATO-RB-220-750
30-day Returns
Free Shipping
Delivery date: 6-12 days

220V one-phase high pressure vortex blower for sale is designed with the air flow capacity of 85 cfm. 0.75 kW large output power but 63 db (a) low noise.

Specification

Model ATO-2PB410A11
Phase 1
Frequency 50
Power 1 hp (750W)
Voltage (AC) 220-240V
Current 5A
Max airflow 145 m³/ h (85 cfm)
Rated vacuum pressure -160 mbar
Rated compress pressure 160 mbar
Noise 63 dB (A)
Weight 19 kg

Dimention (Unit: mm)

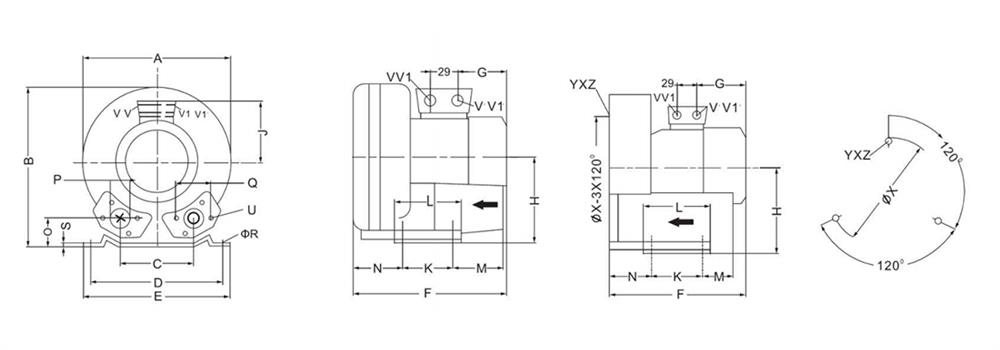

Dimension of ATO 1.1hp regenerative blower

A B C D E F G H J K L M N O P Q ΦR S U V (1~) V' (1~) V1 (3~) V1' (3~) YXZ X-HOLES ΦX
286 302 115 225 255 294 160 154 120 95 130 70 75 46 G11/2 72 12 3 M6X19 M16X1.5 M25X1.5 / / M6X15 0°/ 120°/ 240° 174

Details

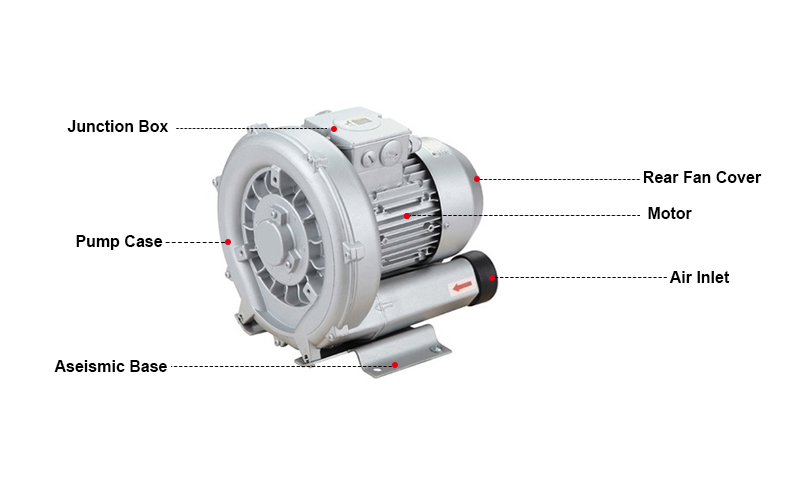

Regenerative Blower Details

Tips: Using tips of high pressure regenerative blower

After purchasing the high pressure regenerative blower from ATO, two aspects of protection are needed: Pressure and dust.
In terms of pressure protection, high pressure regenerative blowers often use pressure relief valves. It is an unloading valve. When the working pressure of the high pressure regenerative blower exceeds the pressure set by the pressure relief valve, the pressure relief valve will automatically open to release the excess pressure, thereby protecting the high pressure regenerative blower.
In dust protection, spiral air pumps often use filters. Different use sites often use filter elements with different filtration accuracy, and different filter elements have different maintenance methods and service life. Please inquire clearly when purchasing.
In some special occasions, special protection is also required: For example, when using a high pressure regenerative blower in a sealed environment, pay attention to ventilation and heat dissipation. When the intake air temperature is relatively high, pay more attention to ventilation and heat dissipation, or choose a high pressure blower that allows a higher intake air temperature.

Existing reviews of 1 Phase 1 hp (750W) Regenerative Blower, 220V, 85 cfm
Powerful regenerative blower
This 750W regenerative blower replaced my old one. I used it for replenishing oxygen to the fishpond. Less fish died and the fish swam faster than before. These obvious changes happened after l changed the blower. I think these pleasant things are to its credit. Its quiet running also ensures a healthy growing environment to fish.
From: Keenon | Date: 11/07/2021
Was this review helpful? Yes No (0/0)
