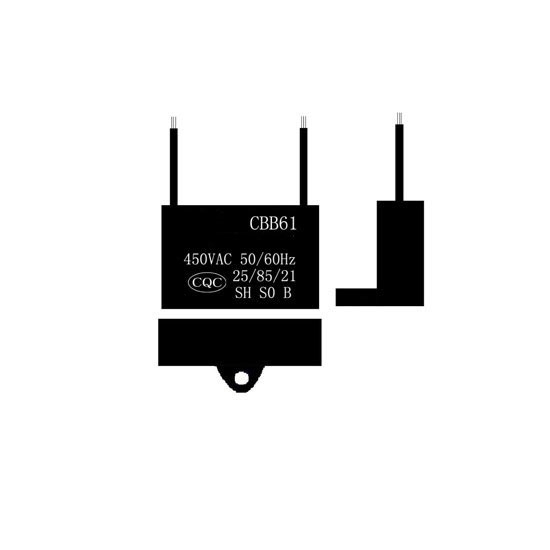

    10μF 450V Ceiling Fan Capacitor

    10μF Ceiling fan capacitor capacitor rated voltage 450V AC, good self-healing, high stability, small size, easy to install, suitable for starting and working of single-phase motor in 50Hz/60Hz AC power system.
    SKU: ATO-FC-CBB61-100
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Ceiling fan capacitor capacitor size 48 x 26 x 38mm, capacity value 10mfd, film type capacitor, rated voltage 450V AC, suitable for climate type 40/105/21, for running different types of ceiling fan motors.


    • Model: ATO-FC-CBB61-100
    • Capacity: 10μF
    • Rated Voltage: 450V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/105/21
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 48(W) x 26(L) x 38(H)mm
    • Certificate: CE, CQC

    10μF Ceiling Fan Capacitor Wiring Diagram

    Ceiling fan capacitor circuit diagram

    Ceiling Fan Capacitor Details

    Ceiling fan capacitor detail

    Tips: Are the "structures" of non-polarized and polarized capacitors the same?

    In principle, if the tip discharge is not considered, any shape of capacitor is required for the application environment. Electrolytic capacitors (polarized capacitors) are usually used in round shape, and square shape is rarely used. There are many different shapes of non-polarized capacitors. For example, tube type, deformed rectangle, sheet type, square type, round type, combined square type, round type, etc. See where they are used. Of course there is also something invisible. The invisible here refers to the distribution capacity. Distribution capacity must not be neglected in high frequency and medium frequency devices.
