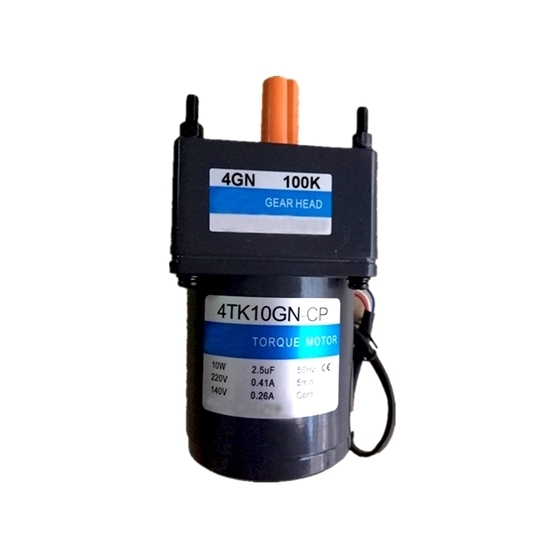

    10 W AC Gear Motor, Torque Motor with Gearbox, single phase

    ATO single phase pinion shaft torque motor, AC gear motor with gearbox, is extremely compact size, provides high starting torque, max. output power up to 10 W. With continuous torque ratings ranging from 25 Nm to 265 Nm, suitable for winding applications.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The provided torque motor is 10W gear motor with gearbox, works at single phase 110V/220V AC low voltage. It has high starting torque and sloping characteristics, allowing easily adjust the torque by changing the voltage going to the motor. (The motor torque changes approximately proportion to the square of the voltage.)

    10 W AC Gear Motor Specifications

    Model 4TK10GN-A 4TK10GN-C
    Shaft Type Pinion Shaft
    Power 10 W
    Frequency 50 Hz 60 Hz 50 Hz 60 Hz
    Rating at Locked rotor 5 Min Continuous 5 Min Continuous 5 Min Continuous 5 Min Continuous
    Voltage 110V 110V 220V 220V
    Starting Torque 235 mN.m 225 mN.m 265 mN.m 225 mN.m
    Max. Output Power 10 W 10 W 10 W 10 W
    Torque at Max. Output Power 127 mN.m 127 mN.m 127 mN.m 127 mN.m
    Speed at Max. Output Power 750 r/min 900 r/min 750 r/min 900 r/min
    Capacitor 10.0/250 8.0/250 2.5/450 2/450
    Weight Motor: 1.6 Kg; Gear head: 0.8 Kg
    Gearbox Model 4GN[]K
    Gear Ratio 3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180,200
    Enter the gear ratio into the box ([]) within the model name

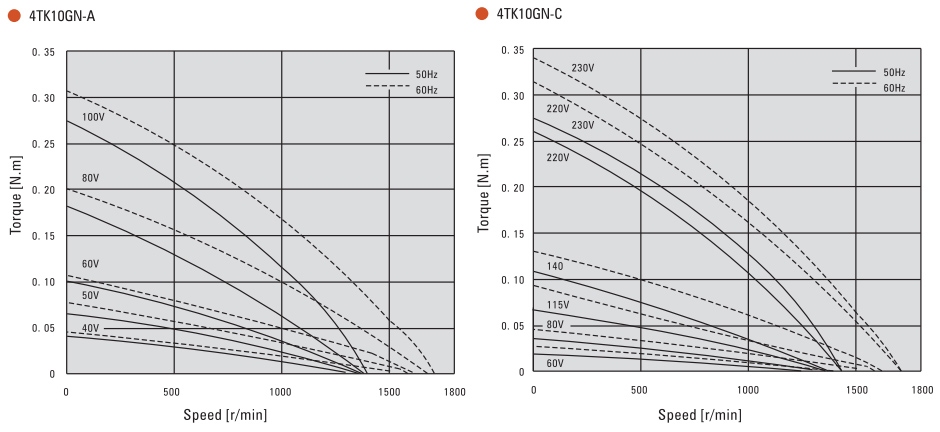

    Speed - Torque Characteristics (Reference Values)
    10 w torque motor speed torque characteristicsDimensions (Unit=mm)

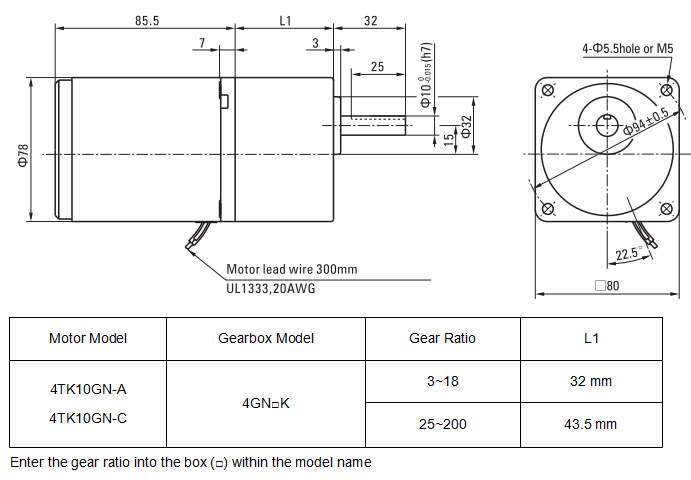

    10 w torque motor dimensionWiring Diagram
    torque motor wiring diagram


    10W AC Gear Motor,Torque Motor with Gearbox Details

    Tips: How to read speed-torque characteristics?
    The motor torque changes approximately proportion to the square of the voltage. When the voltage supplied to the motor is changed, speed - torque curves with a sloping characteristics (torque is highest at zero speed and decreases steadily with increasing speed) shifts to that of the corresponding voltage.

    When the voltage is changed to 100V, 80V, 60V while the load torque is T0, the motor rotates at the speeds N1, N2 and N3 respectively. Thus, the speed can be changed easily by varying the voltage.

    When choosing a torque motor, first determine the required torque and speed. Then select a motor using the speed - torque characteristics curves to determine whether the motor should be operated under continuous duty or limited duty. When used under locked rotor conditions, only the torque factor is considered.

    The temperature rise of the motor may cause a problem during continuous operation. In this case, choose a motor with an output power large enough for continuous operation and adjust the voltage to control the torque and speed.
    speed torque characteristics

    In this video, you will see wiring and testing a ATO single-phase 220V, 50Hz, 6W, 1250rpm torque motor with gearbox.
    Firstly, we use a 250V 15A switch to transfer the direction of rotation of the motor.
    Secondly, apply a 0.8μF capacitor to both ends of the blue and white wires of the motor and connect it to the transfer switch. The intermediate terminal of the transfer switch is connected to the power supply.
    Finally, turn on the power and test.
