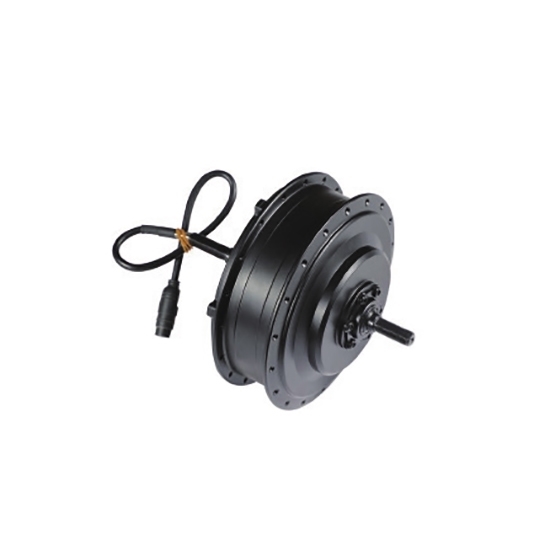

1000W Gear Hub Motor, 24V/ 36V/ 48V, 95 N.m

5 out of 5 based on 2 reviews | Write a review

$416.15

Cheap price wheel hub motor, 1000W rated power, 24-48 volts, 95 N.m torque. Brushless in wheel motor, gear designed, can be installed in the rear. 1:5.83 reduction ratio, 16-28 inch wheel diameter can be customized, 45 km/ h rated speed, 140mm dropout. It is easy to swap out if blown or worn out.

Rated Voltage *
Controller *

SKU: ATO-HM1000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

This gear hub motor has 1000W working power, and rated 48 volts can ensure you ride a long distance under the speed of 45km per hour. Motor working efficiency is higher than 82%.

Specification

Model	ATO-135T
Motor type	Brushless motor
Max. power	1000W
Rated voltage	24V/ 36V/ 48V (optional)
Max torque	95 N.m
Reduction ratio	1:5.83
Installation position	Rear
Motor structure	Gear
Wheel diameter	26 inch is standard configuration (16-28 inch can be customized)
Rated speed	25 km/h~45 km/h
Spoke specification	36H*12g/ 13g
Dropout	140mm
Brake type	V/ Disc brake
Operation temperature	-20℃ - 45℃
Efficiency	≥82%
Color	Black
Cabling route	Shaft center right
Noise grade	≤55 dB
IP grade	IP65
Salt spray test standard	24/ 96 h
Drive and freewheel	6-7s
Weight	5kg

Dimension (Unit: mm)

Details

1000W Gear Hub Motor Details

Tips: What are the advantages of brushless hub motors?

Because the in wheel motor has the characteristics of independent driving of a single wheel, it can be implemented relatively easily whether it is a front drive, a rear drive or a four-wheel drive. The full-time four-wheel drive is very easy to implement on a vehicle driven by an electric hub motor. At the same time, the hub motor can realize differential steering similar to tracked vehicles through the different speeds of the left and right wheels or even reversal, which greatly reduces the turning radius of the vehicle. In special circumstances, it can almost achieve in-situ steering (but at this time, the vehicle steering mechanism and tire wear is greater), which is very valuable for special vehicles.
