1000W Gearless Hub Motor, 36V/ 48V/ 60V/ 72V, 95 N.m

5 out of 5 based on 1 reviews | Write a review
$462.89
Lower cost 1000W gearless hub motor has four voltages to select: 36V/ 48V/ 60V/ 72V. It can run about 25-55 km/ h. The maximum torque is 55 N.m, the wheel diameter is 20-28 inch. BLDC hub motor is designed to install in the rear of the ebike wheel.
*
*
SKU: ATO-GHM1000
30-day Returns
Free Shipping
Delivery date: 6-12 days

Buy best-selling brushless in wheel motor for your ebike. Rated voltage from 36V to 72V are provided. Gearless design, IP 65, 135mm dropout, 82% working efficiency.

Specification

Model ATO-205-35H2
Motor type Brushless DC motor
Max. power 350-1000W
Rated voltage 36V/48V/60V/72V DC (optional)
Max torque 45-55 N.m
Reduction ratio /
Installation position Rear
Motor structure Gearless
Wheel diameter 26 inch
Rated speed 25-55 km/ h
Spoke specification 36H*10G/13G
Dropout Front: 100mm, Rear: 135mm
Brake type V/Disc brake
Operation temperature -20℃ - 45℃
Efficiency ≥82%
Color Black
Cabling route Shaft Center Right/Left
Noise grade ≤55 dB
IP grade IP65
Salt spray test standard 24/96 h
Drive and freewheel 6-7s
Weight 7kg

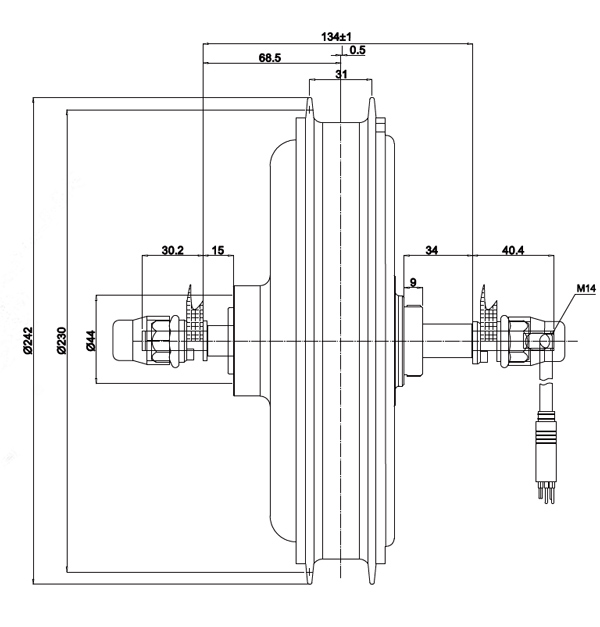

Dimension (Unit: mm)

ATO 1000W gearless hub motor dimension



Details

1000W Gearless Hub Motor Details

Tips: How to maintain the 1kw gearless hub motor?

As the name suggests, the hub motor is a new type of drive technology that installs the motor on the wheel. Its biggest feature is that the power, transmission and braking devices are integrated into the wheel hub, thus greatly simplifying the mechanical part of the electric vehicle. Due to the harsh working environment of the in-wheel motor, it faces many aspects such as water and dust. It also has higher requirements in terms of sealing. At the same time, the design of the 1000W in wheel hub motor also needs to consider the heat dissipation problem separately. Therefore, ATO recommends that the focus of the maintenance of the hub motor is to achieve timely heat dissipation, and also to pay attention to the hygiene problems in harsh environments to ensure that its sealing is intact.
