24000 rpm high speed ISO30 ATC spindle motor with 12 kW power, 3 phase, 220V or 380V AC at 800Hz, air cooled of cooling method, equipped with VFD, is specially designed for CNC router machine.
- Reasonable structure design, simple and compact configuration, easy to take apart.
- High precision, inflexibility and efficiency, long operation life.
- With high grade size, shape, position precision, and quality of the surface.
- Enough abrasive resistance, vibration resistance, stable size.
- Work stable, low noise, enough fatigue strength.
||12000 - 24000 rpm
||380V AV / 220V AC
||22.8A / 39.5
||400 - 800 Hz
|Numbers of Poles
|Type of Cooling
Note: The spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor. Otherwise, it will burn the spindle motor if the settings are not correct.

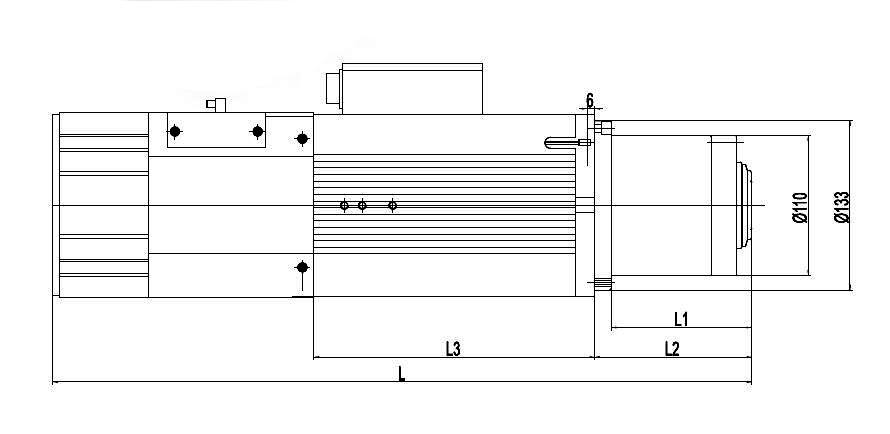

Dimension (Unit: mm)
Tips For Choosing a Spindle Motor
With the increasing demand for high-speed motors in various industries, the application range of high-speed motors has become more and more extensive, so what should we pay attention to when purchasing spindle motors?
Motor: model specifications, functional characteristics, protection type, rated voltage, rated current, rated power, power frequency, insulation class.
Environmental conditions: normal temperature, high temperature, high cold, corrosion, vibration, wind and sand, altitude, electromagnetic pollution, etc.
Purpose: Spindle motor is mainly used for cutting, edging, polishing and polishing of steel, castings, aluminum products, wood, marble, glass and other materials.
Control system: control modes include manual, automatic, remote control, stand-alone operation, and centralized control of the production line.
