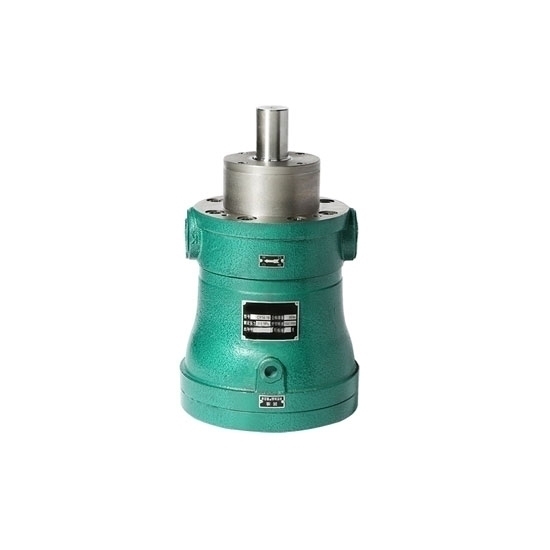

    125 hp Single Acting Axial Piston Pump

    Variable displacement pump power 125 horsepower, single acting type, nominal pressure 31.5MPa, rated speed 1500rpm, simple structure, only need to change the motor with oil plate can be used as a hydraulic motor, special applications in heavy industry and ships.
    SKU: ATO-PP-160YCY
    30-day Returns
    Free Shipping
    Delivery date: 2-12 days

    Single acting piston pump with simple structure, nominal flow rate of 160L/min at 1000r/min, nominal flow rate of 240L/min at 1000r/min, inlet and outlet diameter and connection and system matching, easy installation and disassembly.


    • Model: ATO-PP-160YCY
    • Max Drive Power: 125 hp (94.5 kW)
    • Driving Method: Hydraulic
    • Theoretic Flow: 1000rpm (160L), 1500rpm (240L)
    • Number of Impellers: Single stage
    • Pump Shaft Position: Horizontal
    • Nominal Displacement: 160 cc/rev
    • Nominal pressure: 31.5 Mpa
    • Material: Cast iron
    • Weight: 160 kg
    • Warranty: 12 Months

    125 hp Single Acting Axial Piston Pump Dimension (unit: mm)

    Axial piston pump dimension


    B b bo (N9) b1 b2 b3 D0 D1 (f9) D2 D3 d (h6) d1 d3
    329 340 16 100 120 90 198 150 240 300 55 52 M22 x 1.5

    Hydraulic piston pump dimension

    h1 h3 L I I0 I1 I2 I3 I4 I5 t d0 x h0
    141 25 525 106 100 4 110 180 230 411 59 M16 x 35

    Axial Piston Pump Detail

    Axial piston pump detail

    Tips: What should be noted when using the oil pump?

    • The inlet and outlet of the oil pump must be fitted with a combination of gaskets and a layer of grease on the outside of the pipe joint after it is connected to prevent air from entering.
    • Be sure to fill the oil return hole before use, otherwise the oil pump will be short of oil and instant wear.
    • After injecting oil and connecting all the pipes, it should be idle for 10 minutes and then start to play pressure, so that the residual air in the pump and pipes can be discharged.
    • The oil pump's oil inlet can not be installed with a screen or filter, which will cause damage to the oil pump due to insufficient oil suction. The filter can be installed in the oil tank or in the oil outlet.
