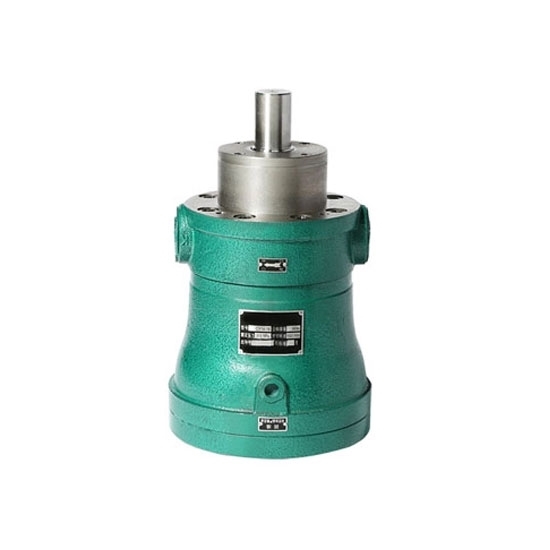

    300 hp Single Acting Axial Piston Pump

    Heavy duty axial piston pump with power 300 hp, manufacturer supports customization, variable displacement pump with its own simple structure and strong self-priming ability is widely used in machine tools forging and ships.
    SKU: ATO-PP-400YCY
    30-day Returns
    Free Shipping
    Delivery date: 2-12 days

    High efficiency single acting axial piston pump, maximum drive power 300 hp, nominal flow rate of 400L/min at 1000r/min, nominal flow rate of 600L/min at 1000r/min,replacement motor oil pan can also be used for motor.


    • Model: ATO-PP-400YCY
    • Max Drive Power: 300 hp (250 kW)
    • Driving Method: Hydraulic
    • Theoretic Flow: 1000rpm (400L), 1500rpm (600L)
    • Number of Impellers: Single stage
    • Pump Shaft Position: Horizontal
    • Nominal Displacement: 400 cc/rev
    • Nominal pressure: 31.5 Mpa
    • Material: Cast iron
    • Weight: 370 kg
    • Warranty: 12 Months

    Single Acting Axial Piston Pump Dimension (unit: mm)

    Axial piston pump dimension


    B b bo (N9) b1 b2 b3 D0 D1 (f9) D2 D3 d (h6) d1 d3
    385 420 18 100 140 110 230 180 280 360 60 65 M27 x 1.5

    Hydraulic piston pump dimension

    h1 h3 L I I0 I1 I2 I3 I4 I5 t d0 x h0
    170 25 632 110 100 5 112 212 277 502 63.9 M20 x 45

    Axial Piston Pump Detail

    Axial piston pump detail

    Tips: What causes the axial piston pump work when the pressure gauge pointer is unstable?

    1. Serious wear between the oil plate and cylinder body or plunger and cylinder body, so that the internal and external leakage is too large.

    Treatment: check and repair the mating surface of the oil plate and cylinder body; single-cylinder research, replace the plunger; tighten the connecting screws to exclude leakage.

    2. If it is axial piston variable pump, it may be because the variable angle of the variable mechanism is too small, resulting in too small flow and relatively large internal leakage. Therefore, it can not continuously supply oil and make the pressure unstable.

    Treatment: appropriately increase the variable angle L of the variable mechanism and eliminate the internal leakage.

    3. Blockage of oil inlet pipe, large suction resistance and air leakage may cause unstable pressure gauge pointer.

    Treatment: The oil inlet pipe is blocked, and the liquid flow resistance is large. Can unclog the oil pipeline to replace or remove the filter, check and solid into the oil pipe section of the connection screw, to exclude air leakage. (If the filter needs to be replaced once every three months)
