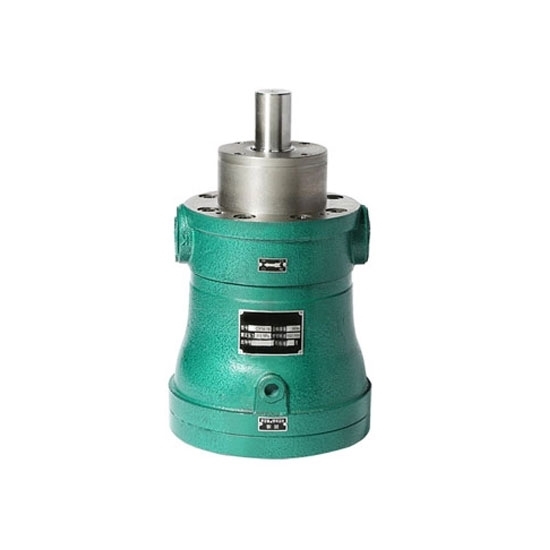

    15 hp Single Acting Axial Piston Pump

    5 out of 5 based on 1 reviews | Write a review
    Variable displacement piston pump for sale, power 15 hp, single acting, pressure 31.5 MPa, variable displacement axial piston pumps can adjust the geometric output from maximum to zero, only need to change the motor with oil plate can be used as hydraulic motor.
    30-day Returns
    Free Shipping
    Delivery date: 2-12 days

    Single acting axial piston pump is an axial piston pump with oil distribution disk and rotating cylinder body, with a maximum driving horsepower of 10 kW, variable displacement piston pump with strong self-priming force, suitable for machine tools, forging, metallurgy, engineering, mining and other machinery and other hydraulic transmission systems.


    • Model: ATO-PP-10YCY
    • Max Drive Power: 15 hp (10 kW)
    • Driving Method: Hydraulic
    • Theoretic Flow: 1000rpm (10L), 1500rpm (15L)
    • Number of Impellers: Single stage
    • Pump Shaft Position: Horizontal
    • Nominal Displacement: 10 cc/rev
    • Nominal pressure: 31.5 Mpa
    • Material: Cast iron
    • Weight: 24 kg
    • Warranty: 12 Months

    Variable Displacement Piston Pump Dimension (unit: mm)

    Axial piston pump dimension

    B b bo (N9) b1 b2 D0 D1 (f9) D2 D3 d (h6) d1 d3
    172 142 8 50 88 100 75 125 150 25 M22 x 1.5 M14 x 1.5

     Hydraulic piston pump dimension

    h1 L I I0 I1 I2 I3 I4 I5 t d0 x h0
    71 253 40 30 4 41 86 109 194 28 M10 x 15

    15 hp Axial Piston Pump Detail

    Axial piston pump detail

    Tips: Axial piston pump working principle

    The main part of the axial piston pump is driven by the drive shaft to rotate the cylinder, so that the seven plungers evenly distributed on the cylinder rotate around the center line of the drive shaft, and through the central spring, the plunger slide group in the body, the sliding shoe of the plunger is pressed on the variable head (or swash plate). This way, the plunger moves reciprocally with the rotation of the cylinder to complete the oil absorption and pressure action.

    Existing reviews of 15 hp Single Acting Axial Piston Pump
    Very useful pump
    The single acting axial piston pump seems to work well and it is easy to install.
