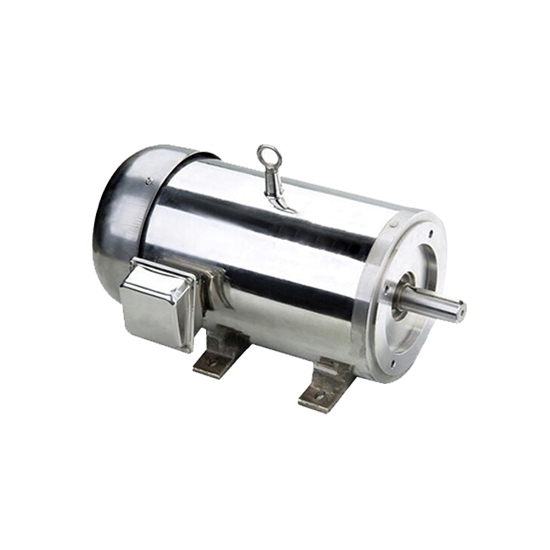

1hp (0.75kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

5 out of 5 based on 2 reviews | Write a review

$885.46

Cheap price stainless steel motor with rated power 750 watt, rated voltage 208V~230V/ 460V, 50-60Hz frequency, 2 pole, three mounting types for selection. Stainless steel electric motor is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.

Installation *
Voltage *

SKU: ATO-IEC-801

Qty:

30-day Returns

Free Shipping

Delivery date: 40-45 days

Overview
Related Video

1hp stainless steel motor with 3 phase, TENV cooling type, IE 4 efficiency and class F insulation class. The stainless motor offers low noise, easy to clean and long service life.

Features

Smooth stainless steel enclosures easy to clean and sanitize.
IP65 for water protection rating ensures suitability for clean in place washdown procedures.
Encapsulated windings prevent any water and moisture from reaching the windings.
Low surface temperature with less operation costs due to high efficiency.

Specification

Model	ATO-IEC-801
Rated power	1hp (750W)
Rated voltage	208V~230V/ 460V
Number of pole	2P
Phase	3 phase
Cooling method	TENV
Frequency	50/ 60Hz
Raged speed	2950r/min
Mounting type	B3/ B5/ B14
Stainless steel	304
Protection grade	IP65
Insulation class	Class F
Protect Feature	Waterproof
Efficiency	IE 4
Weight	29kg
Certificate	CE, UL
Warranty	12 months

Dimension

Mounting type	Frame size	Mounting dimensions (mm)
Mounting type	Frame size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	Flange Hole	Shaft Hole	AB	AC	AD

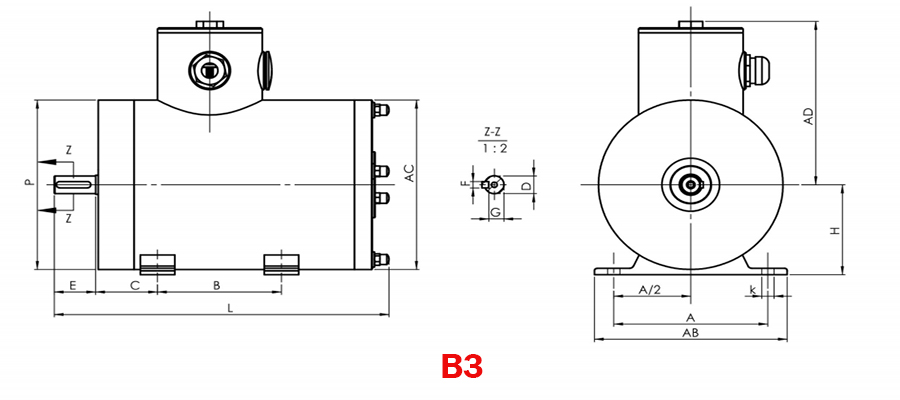

B3	80	125	62.5	100	50	19	40	6	15.5	80	10	-	-	144	-	-	-	-	M6	150	144	135

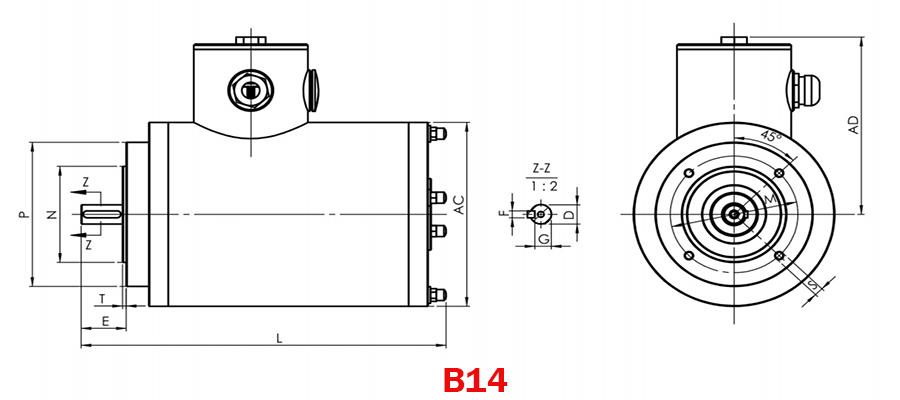

B14		-	-	-	-	19	40	6	15.5	-	-	100	80	120	0	M6	3	4	M6	-	144	135

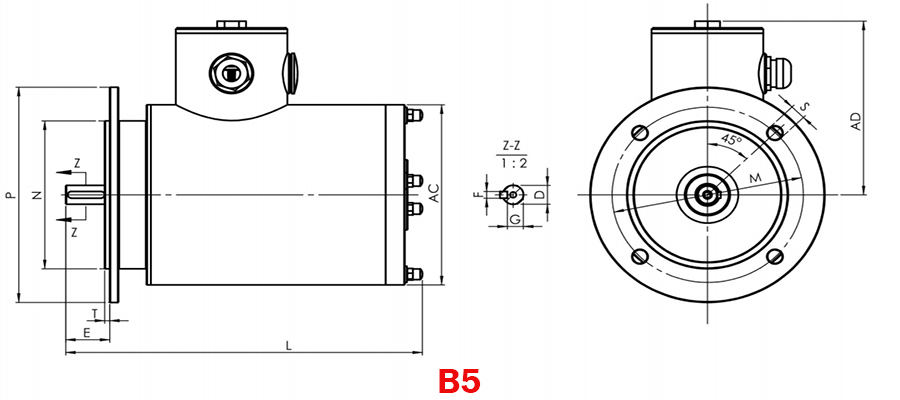

B5		-	-	-	-	19	40	6	15.5	-	-	165	130	200	0	12	3.5	4	M6	-	144	135

Details

750W Stainless Steel Motor Details

Tips: The Basic Structure of Stainless Steel Motor.

The stainless steel motor is mainly composed of a stator and a rotor. The stator is a stationary part, and the rotor is a rotating part. There is a certain air gap between the stator and the rotor.
The stator is composed of iron core, winding and base. The rotor consists of an iron core and windings. The rotor windings have squirrel cage and wire wound windings. The squirrel-cage rotor is formed by inserting copper bars into the rotor core slots, and then welding all the copper bars at both ends on two copper end rings; the wire-wound rotor winding is the same as the stator winding, and the windings composed of coils are put into the rotor core In the slot.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.
