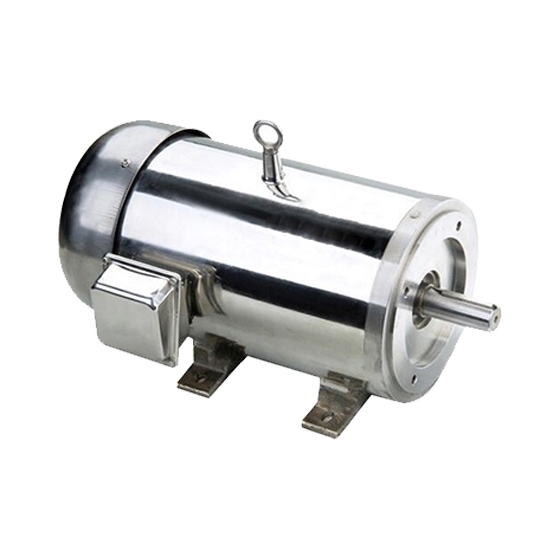

    10hp (7.5kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

    $2,222.54
    Economical price stainless steel motor with rated power 10hp (7.5kW), rated voltage 208V~230V/ 460V, 2P, TEFC cooling method, B3/ B5/ B14 for selection. It is designed for industries requiring high hygiene like meat, poultry, fish, dairy, beverage and wherever high food safety is essential.
    SKU: ATO-IEC-132S2
    *
    *
    Free Shipping Worldwide
    Delivery date: 40-45 days

    7.5kW stainless steel electric motors with 3 phase, 50-60Hz frequency, 2950r/ min raged speed. It is designed for industries requiring high hygiene like meat, poultry, fish, dairy, beverage and wherever high food safety is essential.

    Features

    • Smooth stainless steel enclosures easy to clean and sanitize.
    • IP65 for water protection rating ensures suitability for clean in place washdown procedures.
    • Encapsulated windings prevent any water and moisture from reaching the windings.
    • Low surface temperature with less operation costs due to high efficiency.

    Specification

    Model IEC-132S2
    Rated power 10hp (7.5kW)
    Rated voltage 208V~230V/ 460V
    Number of pole 2P
    Phase 3 phase
    Cooling method TEFC
    Frequency 50/ 60Hz
    Raged speed 2950r/min
    Mounting type B3/ B5/ B14
    Stainless steel 304
    Protection grade IP65
    Insulation class Class F
    Protect Feature Waterproof
    Efficiency IE 4
    Weight 110kg
    Certificate CE, UL
    Warranty 12 months

    Dimension

    Dimension of 10hp stainless steel motor

    Dimension of 10hp stainless steel motor

     Dimension of 10hp stainless steel motor

    Mounting type Frame size Mounting dimensions (mm)
    A A/2 B C D E F G H K M N P R S T Flange Hole Shaft Hole AB AC AD
    B3 132S 216 108 140 89 38 80 10 33 132 12 - - 244   - - - M12 246 256 192
    B14 - - - - 38 80 10 33 - - 165 130 200 0 M10 3.5 4 M12 - 256 192
    B5 - - - - 38 80 10  33 - - 265 230 300 0 15 4 4 M12 - 256 192

    Tips: Types of Protection of Stainless Steel Motor.

    Loss of pressure protection:
    If the motor suddenly loses power during normal operation, it may start on its own when the power supply voltage is restored, causing a personal accident or damage to the mechanical equipment. The protection provided to prevent the self-starting of the motor or the electrical components from putting into work when the voltage is restored is called the voltage loss protection. The use of contactors and buttons to control the starting brake of the motor has the function of voltage loss protection. If the grid voltage disappears during normal operation, the contactor will automatically release and cut off the motor power supply.
