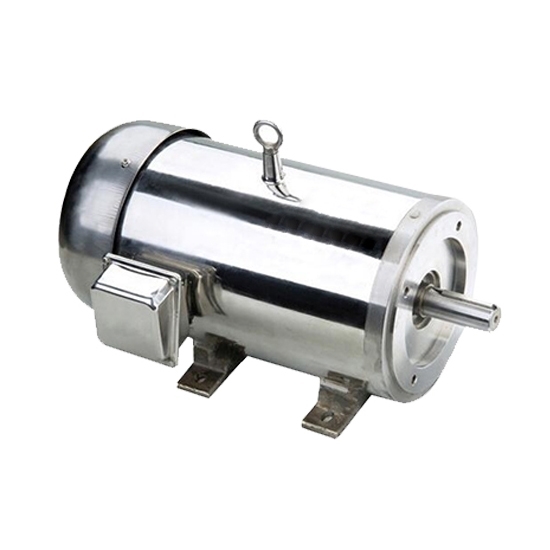

    3hp (2kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

    $1,183.81
    Competitive price stainless steel electric motors with rated power 2000W, B3/ B5/ B14 for selection, raged speed 2950r/ min, 50/ 60Hz frequency. It has advantages of high level of protection, which can be used in the rain environment, smooth surface, convenient and quick cleaning, long service life, etc.
    SKU: ATO-IEC-90L
    *
    *
    Free Shipping Worldwide
    Delivery date: 40-45 days

    Stainless steel motor with cheap price, which features three phase, rated voltage 208V~230V/ 460V and CE, UL certification. It is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.

    Features

    • Smooth stainless steel enclosures easy to clean and sanitize.
    • IP65 for water protection rating ensures suitability for clean in place washdown procedures.
    • Encapsulated windings prevent any water and moisture from reaching the windings.
    • Low surface temperature with less operation costs due to high efficiency.

    Specification

    Model IEC-90L
    Rated power 3hp (2kW)
    Rated voltage 208V~230V/ 460V
    Number of pole 2P
    Phase 3 phase
    Cooling method TEFC
    Frequency 50/ 60Hz
    Raged speed 2950r/min
    Mounting type B3/ B5/ B14
    Stainless steel 304
    Protection grade IP65
    Insulation class Class F
    Protect Feature Waterproof
    Efficiency IE 4
    Weight 45kg
    Certificate CE, UL
    Warranty 12 months

    Dimension

    Dimension of 3hp stainless steel motor

    Dimension of 3hp stainless steel motor

     Dimension of 3hp stainless steel motor

    Mounting type Frame size Mounting dimensions (mm)
    A A/2 B C D E F G H K M N P R S T Flange Hole Shaft Hole AB AC AD
    B3 90L 190 95 140 70 28 60 8 24 112 12 - - 206   - - - M10 220 218 174
    B14 - - - - 28 60 8 24 - - 130 110 160 0 M8 3.5 4 M10 - 218 174
    B5 - - - - 28 60 8 24 - - 215 180 250 0 15 4 4 M10 - 218 174

    Tips: Types of Protection of Stainless Steel Motor.

    Short circuit protection:
    A short circuit is a phenomenon in which current flows through an abnormal path due to insulation damage, wiring errors, and other reasons. The instantaneous short-circuit current may reach dozens or even hundreds of times the rated current of the motor. If the power supply cannot be cut off in time, it may cause irreparable damage to the motor, and may also cause electric shock, fire and other hazards. The short-circuit protection should meet the following requirements: one is that the power supply must be cut off within a short time; the other is that the protection device should not malfunction when the motor is started and braked normally.
    Commonly used short-circuit protection devices are fuses and circuit breakers.
