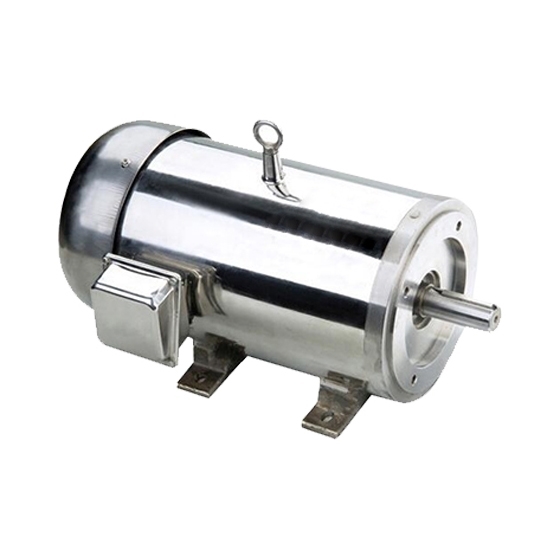

    5.5hp (4kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

    $2,222.54
    4kW stainless steel motor with rated voltage 208V~230V/ 460V, B3/ B5/ B14 three mounting types can be chosen, TEFC cooling method. It is designed for industries requiring high hygiene like meat, poultry, fish, dairy, beverage and wherever high food safety is essential.
    SKU: ATO-IEC-IEC-112M
    *
    *
    Free Shipping Worldwide
    Delivery date: 40-45 days

    Lower cost stainless steel electric motors with rated power 5.5hp, 2950r/ min speed, IE 4 efficiency. It is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.

    Features

    • Smooth stainless steel enclosures easy to clean and sanitize.
    • IP65 for water protection rating ensures suitability for clean in place washdown procedures.
    • Encapsulated windings prevent any water and moisture from reaching the windings.
    • Low surface temperature with less operation costs due to high efficiency.

    Specification

    Model IEC-112M
    Rated power 5.5hp (4kW)
    Rated voltage 208V~230V/ 460V
    Number of pole 2P
    Phase 3 phase
    Cooling method TEFC
    Frequency 50/ 60Hz
    Raged speed 2950r/min
    Mounting type B3/ B5/ B14
    Stainless steel 304
    Protection grade IP65
    Insulation class Class F
    Protect Feature Waterproof
    Efficiency IE 4
    Weight 67kg
    Certificate CE, UL
    Warranty 12 months

    Dimension

    Dimension of 5.5hp stainless steel motor

    Dimension of 5.5hp stainless steel motor

     Dimension of 5.5hp stainless steel motor

    Mounting type Frame size Mounting dimensions (mm)
    A A/2 B C D E F G H K M N P R S T Flange Hole Shaft Hole AB AC AD
    B3 112 140 70 125 56 24 50 8 20 90 9 - - 164   - - - M8 164 176 147
    B14 - - - - 24 50 8 20 - - 115 95 140 0 M8 3 4 M8 - 176 147
    B5 - - - - 24 50 8 20 - - 165 130 200 0 12 3.5 4 M8 - 176 147

    Tips: Types of Protection of Stainless Steel Motor.

    Overcurrent protection:
    Overcurrent means that the working current of the motor exceeds its rated value. If it takes a long time, it will overheat the motor and damage the motor, so protective measures need to be taken.
    When overcurrent, the current still flows through the normal path, and its value is smaller than the short-circuit current value. Overcurrent is generally due to excessive load or incorrect startup. In order to avoid affecting the normal operation of the motor, the overcurrent protection action value should be slightly larger than the normal starting current.
    Overcurrent protection also requires the protection device to be able to act instantaneously. Overcurrent protection generally uses overcurrent relays.
