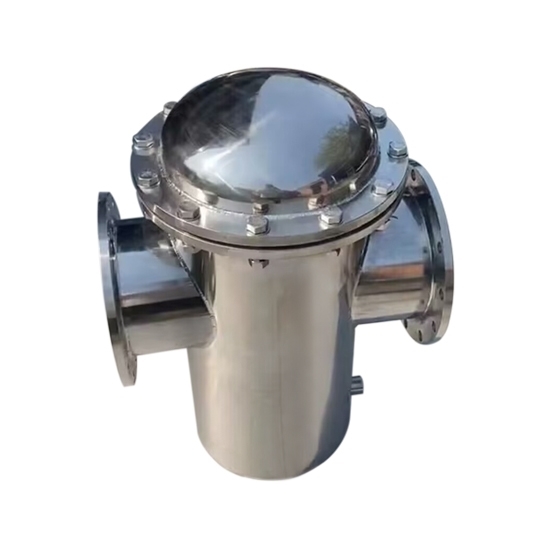

2 1/2 inch Stainless Steel Basket Strainer

Note: This basket strainer cannot be used for drinking water.

Buy a flanged basket filter online with a nominal diameter 2 1/2 inch, a working temperature is 0°C~330°C, filtration accuracy of 100-400 mesh. The simplex basket strainer is extremely easy to use and maintain.

Specification

• Model: ATO-HG65
• Type: Basket Type Strainer
• Nominal Diameter: 2 1/2 inch (DN65)
• Working Pressure: 1.6-10MPa
• Product Material: Stainless Steel
• Connection Form: Flange
• Temperature Range: 0°C~330°C
• Filtration accuracy: 100-400 mesh
• Medium: Water, oil

Dimension (mm)

Detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Tips: How to maintain a stainless steel basket strainer?

• The core part of the filter is the filter element. The filter element is composed of a filter frame and a stainless steel wire mesh. The stainless steel wire mesh is a vulnerable part and needs special protection.
• After the filter works for a period of time, certain impurities are deposited in the filter element. At this time, the pressure drop increases and the flow rate will decrease. It is necessary to remove the impurities in the filter element in time.
