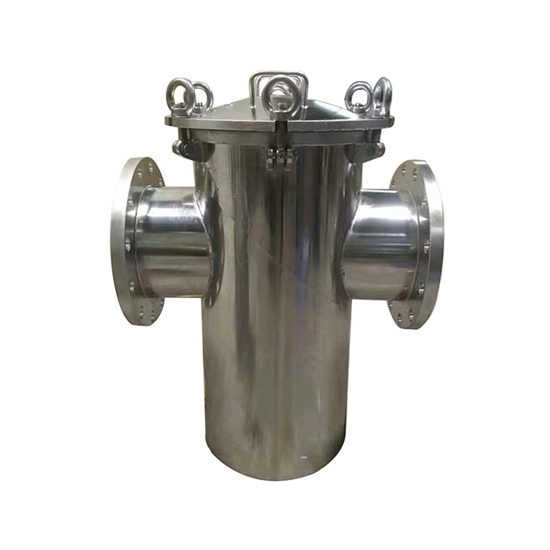

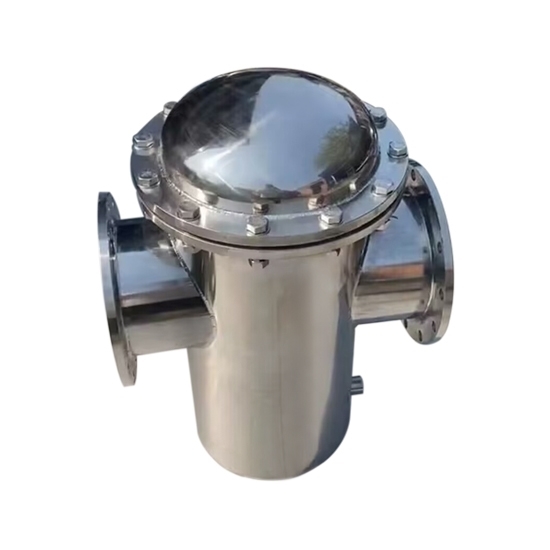

6 inch Stainless Steel Basket Strainer

Note: This basket strainer cannot be used for drinking water.

Lower cost 6 inch (DN150) stainless steel basket strainer for sale online. It is a basket-type filter with 1.6-10MPa working pressure, SS material, and can be used to remove unwanted particles, debris and other impurities.

Specification

• Model: ATO-HG150
• Type: Basket Type Strainer
• Nominal Diameter: 6 inch (DN150)
• Working Pressure: 1.6-10MPa
• Product Material: Stainless Steel
• Connection Form: Flange
• Temperature Range: 0°C~330°C
• Filtration accuracy: 100-400 mesh
• Medium: Water, oil

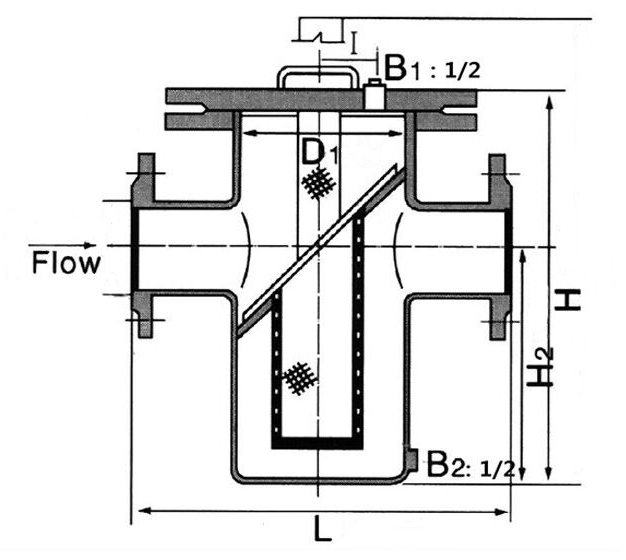

Dimension (mm)

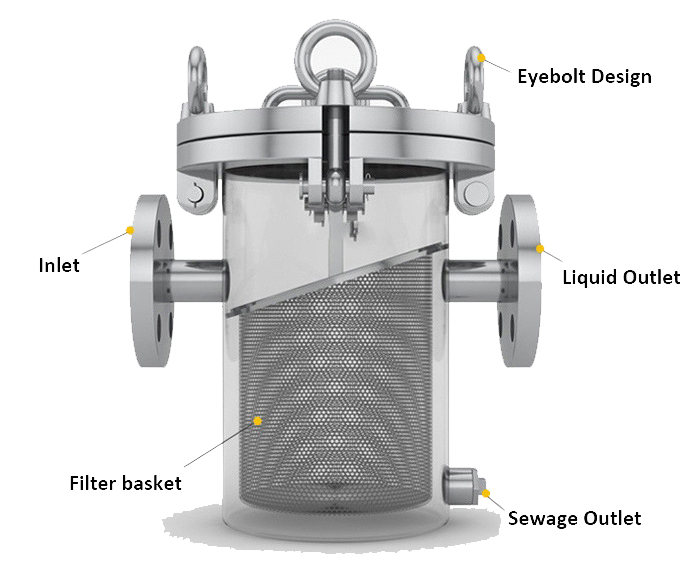

Detail

Application

Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

Tips: What are the functions of the basket strainer?

• Strainer impurities: A basket strainer can strain impurities in liquid, gas and steam, such as sand, rust, soil, fiber, etc., to protect equipment and pipelines from damage. These impurities will cause problems such as wear, corrosion, and blockage of equipment and pipelines, affect the normal operation of equipment and pipelines, and even cause failure and damage to equipment and pipelines.
• Improve the service life of equipment and pipelines: the basket strainer can strain impurities in liquid, gas, and steam, reducing wear, corrosion and blockage of equipment and pipelines, thereby improving the service life of equipment and pipelines. This can reduce the maintenance and replacement costs of equipment and pipelines, and improve the operating efficiency and reliability of equipment and pipelines.
