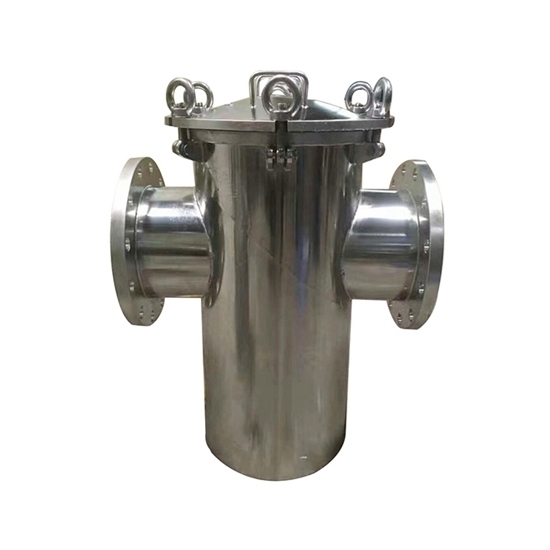

    3 inch Stainless Steel Basket Strainer

    Cost-effective basket strainer features 1.6-10MPa working pressure, stainless steel material, and filtration accuracy of 100-400 mesh. The flanged basket strainer is mainly used to filter impurities in liquid, gas, and steam, and protect equipment and pipelines from damage.
    30-day Returns
    Free Shipping
    Delivery date: 10-20 days

    High quality 3 inch (DN80) stainless steel basket strainer is used in piping systems to remove unwanted particles, debris, and other impurities from fluid flowing through the system. Flange connection, stainless steel materials can withstand high temperatures and pressure.


    • Model: ATO-HG80
    • Type: Basket Type Strainer
    • Nominal Diameter: 3 inch (DN80)
    • Working Pressure: 1.6-10MPa
    • Product Material: Stainless Steel
    • Connection Form: Flange
    • Temperature Range: 0°C~330°C
    • Filtration accuracy: 100-400 mesh
    • Medium: Water, oil

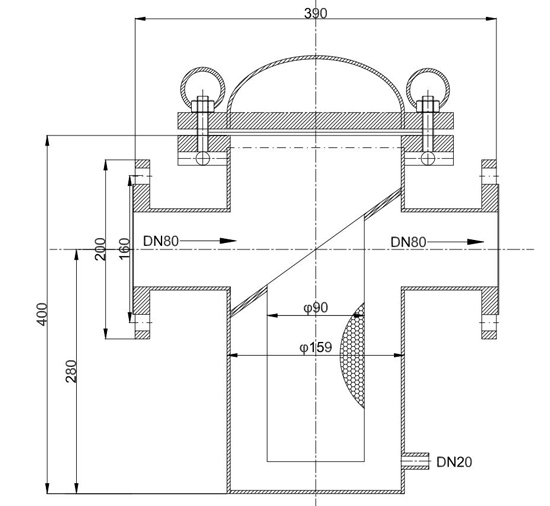

    Dimension (mm)

    Stainless steel basket strainer dimension

    DN D L H2 H
    80 159mm 340mm 250mm 400mm

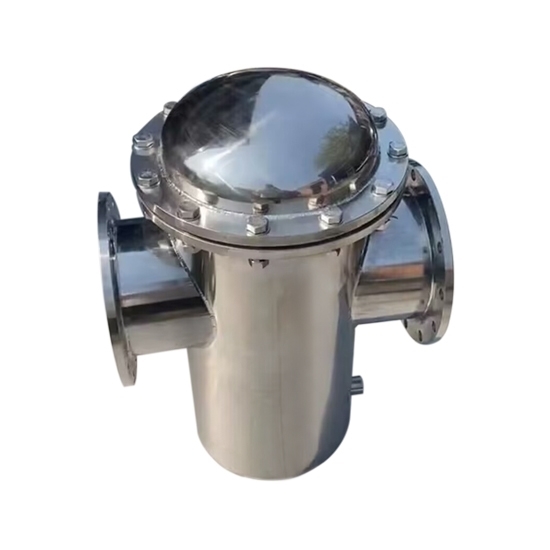

    Stainless steel basket strainer detail


    Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

    Basket strainer application

    Tips: How to maintain a stainless steel basket strainer?

    • When cleaning impurities, pay special attention to the stainless steel wire mesh on the filter element not be deformed or damaged, otherwise, if the filter is installed again, the purity of the filtered medium will not meet the design requirements, and compressors, pumps, instruments, and other equipment will be damaged.
    • If the stainless steel wire mesh is found to be deformed or damaged, it must be replaced immediately.
