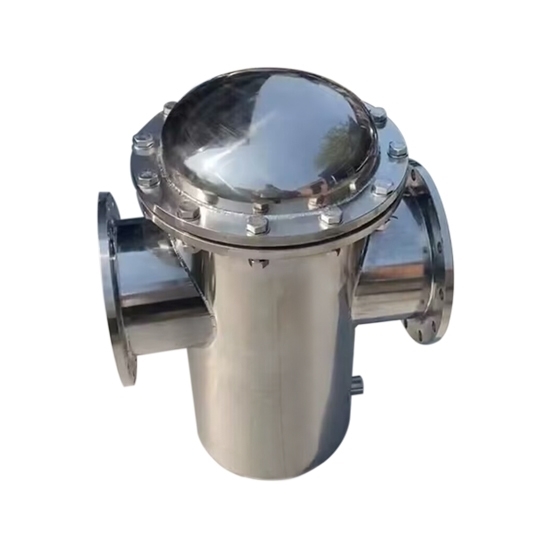

    5 inch Stainless Steel Basket Strainer

    Cost-effective basket strainer features 5" (DN125) nominal diameter, 1.6-10MPa working pressure, stainless steel material, and filtration accuracy of 100-400 mesh. The structure of the basket filter should be simple and reliable, flexible in loading and unloading, easy to disassemble and wash, and good in sealing.
    30-day Returns
    Free Shipping
    Delivery date: 10-20 days

    Reliable 5 inch basket strainer for sale online. The basket filter comes with DN125, working temperature is 0°C~330°C, SS material. Flange stainless steel basket filter is suitable for chemical processing, oil and gas, water treatment and food processing.


    • Model: ATO-HG125
    • Type: Basket Type Strainer
    • Nominal Diameter: 5 inch (DN125)
    • Working Pressure: 1.6-10MPa
    • Product Material: Stainless Steel
    • Connection Form: Flange
    • Temperature Range: 0°C~330°C
    • Filtration accuracy: 100-400 mesh
    • Medium: Water, oil

    Dimension (mm)

    Stainless steel basket strainer dimension

    DN D L H2 H
    125 273mm 480mm 360mm 550mm


    Stainless steel basket strainer detail


    Basket strainers are mainly used in working conditions with a large number of impurities. Basket strainers are mainly used in water, oil, or other liquid pipelines, and have been widely used in petroleum, chemical, pharmaceutical, food, and other industries.

    Basket strainer application

    Tips: How does a basket strainer work?

    When the basket strainer is working, the medium enters the inner side of the strainer screen from the inlet, enters the outer side of the strainer screen after being strainered by the strainer screen, and enters the pipeline system through the outlet. When the basket strainer has been used for a certain period of time, due to the blockage of dirt, the resistance of the book increases. At this time, it is necessary to open the cover of the collector, take out the strainer cartridge inside and clean it, and then continue to use it.
