    2.7 kW AC Servo Motor, 380V, 17Nm/34Nm, 1500 rpm

    2.7 kW AC Servo Motor, 380V, 17Nm/34Nm, 1500 rpm

    Write a review
    $964.92

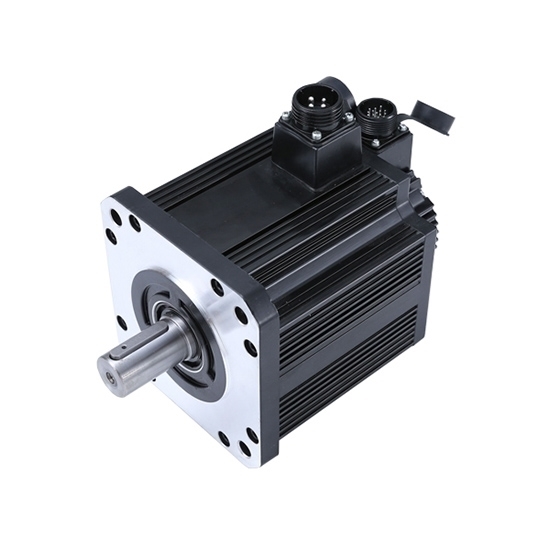

    2.7 kW brushless design servo motor is 380V AC supply voltage, 1500 rpm low speed, 17 Nm rated torque, maximum output torque of 34 Nm, equipped with a 2,500 PPR incremental encoder. It is available in a 180mm square flange size, with a brake option.
    SKU: ATO-SERVO-180S2700
    *
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days
    Related products
    1.3 kW AC Servo Motor, 2500 rpm, 5Nm/15 Nm

    1.3 kW AC Servo Motor, 2500 rpm, 5Nm/15 Nm

    $678.23
    SKU: ATO-SERVO-130S1300
    220V AC supply voltage brushless servo motor, single or three phase input, power ratings up to 1.3 kW, rated speed of 2500 rpm, rated torque of 5 Nm, maximum output torque up to 15 Nm. It is available in flange sizes of 130mm square flange size, with brakes and encoder options.
    3 kW AC Servo Motor, 15Nm/30Nm, 2000 rpm

    3 kW AC Servo Motor, 15Nm/30Nm, 2000 rpm

    $887.69
    SKU: ATO-SERVO-150S3000
    High torque brushless AC servo motor is 3 kW (4 hp) power rating, 2000 rpm, 15 N.m rated torque, peak torque of 30 N.m, equipped with a 2,500 PPR incremental encoder. It is available in a 150mm square flange size, with a brake option.
    3.6 kW Brushless AC Servo Motor, 18Nm/36Nm, 2000 rpm

    3.6 kW Brushless AC Servo Motor, 18Nm/36Nm, 2000 rpm

    $963.31
    SKU: ATO-SERVO-150S3600
    Brand new 3.6 kW brushless AC integrated servo motor is 150mm square flange size, 2000 rpm, 18 Nm rated torque, peak torque is 36 Nm, equipped with a 2,500 PPR incremental encoder. Low cost servo motor and manufacturer direct sale.
    3.7 kW AC Servo Motor, 380V, 35 Nm/70 Nm, 1000 rpm

    3.7 kW AC Servo Motor, 380V, 35 Nm/70 Nm, 1000 rpm

    $1,159.45
    SKU: ATO-SERVO-180S3700
    3.7 kW 35 Nm high torque servo motor, 380V AC supply voltage three phase input, rated speed of 1000 rpm, peak torque of 70 Nm. Brushless servo motor, available in a 180mm square flange size, IP65 degree of protection.
    2 hp (1.5 kW) AC Servo Motor, 10Nm/25Nm, 1500 rpm

    2 hp (1.5 kW) AC Servo Motor, 10Nm/25Nm, 1500 rpm

    $708.56
    SKU: ATO-SERVO-130S1500
    2 hp (1.5 kW) brushless servo motor with low rated speed of 1500 rpm, max speed up to 1800rpm, rated holding torque of 10 Nm, maximum output torque up to 25 Nm. Single or three phase 220V AC input, 2,500 PPR incremental encoder or absolute encoder attached, manufacturer direct sale.

    High torque AC servo motor, with a power rating of 2.7 kW, rated speed of 1500rpm, rated torque is 17Nm and peak torque up to 34N, offering high performance and high accuracy control. Brushless servo motor, IP65 for body, long life and high reliable.

    2.7 kW Servo Motor Specification

    Basics Model ATO180SY-M17015-H
    Matched Drive Model ATO-SG-AS755500
    Weight 19.5 Kg
    Rated Power 2700 W
    Rated Voltage Three phase 380V AC
    Rated Current 6.5 A
    Rated Speed 1500 rpm
    Max Speed 1800 rpm
    Rated Torque 17 N.m
    Peak Torque 34 N.m
    Rotor Inertia 3.4x10-3 KG.m2
    Technical Parameters Number of Pole Pairs 4
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP65
    Warranty  12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension

    180 series servo motor dimension

    L (Incremental/Absolute encoder): 226 mm

    Servo Motor with Brake Dimension

    180 series servo motor with brake dimension

    L (with brake): 306 mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding Connection Table

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number 2 3 4 1 Socket Number 1 2
    Brake Voltage 24V DC

    The Encoder Connection Table

    Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Installation precautions for servo motor

    1. When installing or removing coupling components to servo motor shaft terminal, do not use hammer to tap the shaft terminal directly. (If the shaft terminal is tapped directly by hammer, the encoder on the other terminal of servo motor shaft may be damaged.)
    2. Align the shaft terminal as much as possible (misalignment may cause vibration or damage to bearing).

    How to wire ATO servo driver and set Jog mode

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo driver and how to set the JOG mode.

    Introduce of servo motor analog control

    This video introduces the analog control of ATO servo motor, as well as its position control mode (pulse type), torque control mode, to achieve the purpose of rapid adjustment.
