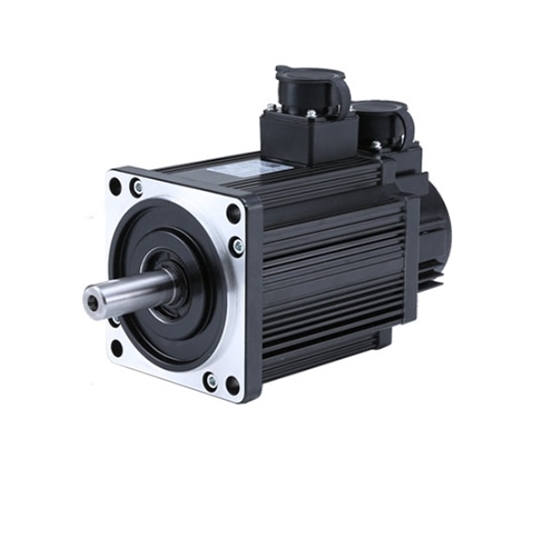

    1.8 kW AC Servo Motor, Brushless, 6Nm, 3000rpm

    5 out of 5 based on 1 reviews | Write a review
    $659.15
    High speed control 1.8 kW AC servo motor, rated speed of 3000rpm, 6Nm rated torque, with max output speed of 3600rpm, peak torque up to 18Nm. Brushless design, equipped with a 2500 PPR incremental encoder or absolute encoder.
    SKU: ATO-SERVO-110S1800
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Favorable price 1.8 kW brushless AC servo motor, 3-phase 220V AC rated voltage, 6Nm rated torque, peak torque of 18Nm, available in a 110mm square flange size. Heavy duty servo motor is widely used in factory automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

    Specification

    Basics Model ATO110SY-M06030
    Matched Drive Model ATO-SG-AS302600
    Square Flange Size 110 mm
    Rated Power 1800 W
    Rated Voltage Three phase 220V AC
    Rated Current 6 A
    Rated Speed 3000 rpm
    Max Speed 3600 rpm
    Rated Torque 6 N.m
    Peak Torque 18 N.m
    Rotor Inertia 1.0x10-3 KG.m2
    Weight 10 Kg
    Technical Parameters Number of Pole Pairs 4
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP65
    Warranty  12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Installation Dimension (unit=mm)

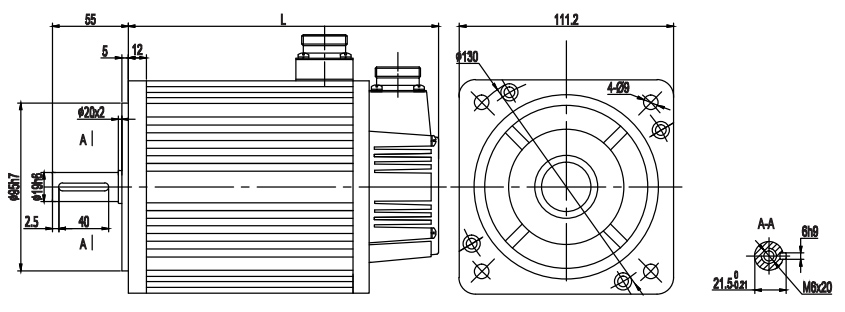

    Servo Motor without Brake Dimension

    110 series servo motor dimension

    L (Incremental/Absolute encoder): 220 mm

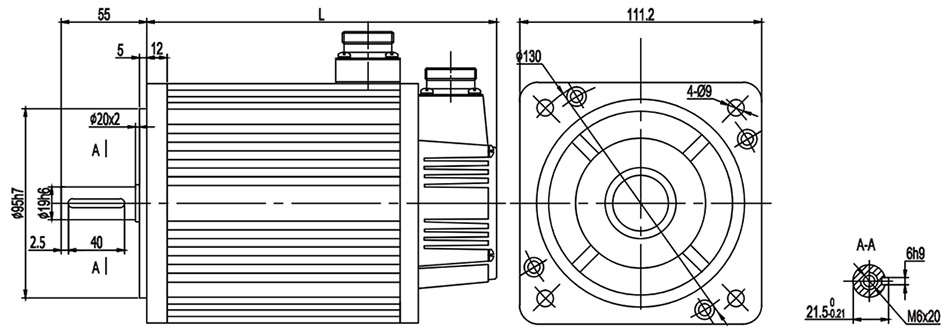

    Servo Motor with Brake Dimension

    110 series servo motor with brake dimensionL1 (with brake): 280 mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Servo Motor Winding Connection

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number 2 3 4 1 Socket Number 1 2
    Brake Voltage 24V DC

    Servo Motor Encoder Connection

    Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1
    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Motion controller usually adapts two types of command mode to control servo motor

    1. Digital pulse

    This mode is similar to the control mode of stepper motor. The motion controller sends "pulse/dection" irtype pulse command signal to servo driver, when servo driver operates in position control mode, position closed loop is completed by servo driver. This mode of servo motor has the advantages that system debugging is simple and is difficult to cause interference, but has the disadvantage that the response of servo system is slightly slow.

    2. Analog signal

    In this mode, motion control system sends -10V analog voltage command to servo driver and receives position feedback signals from position detection elements, such as motor encoder or linear grating, etc.. When servo driver operates in speed control mode, position closed loop is completed by motion controller. Europe and America servo products mostly adapt such operation mode, which has the advantage that response of servo is rapid, but the disadvantage is that they are sensitive to site interference and debugging is complex.

    How to wire ATO servo driver and set Jog mode

    The video shows the basic connection of the ATO servo motor kit and how to initialize the servo driver and how to set the JOG mode.

    Introduce of servo motor analog control

    This video introduces the analog control of ATO servo motor, as well as its position control mode (pulse type), torque control mode, to achieve the purpose of rapid adjustment.

    Existing reviews of 1.8 kW AC Servo Motor, Brushless, 6Nm, 3000rpm
    Running time of AC servo motor
    My use case involves torque loads that are fairly constant, but at times there will be peaks (almost 50% higher loads) for short bursts. Do you have data on how long your AC servo motor can run at peak power?
    From: Mfloyd | Date: 07/06/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The AC servo motor has a general overload capacity of 2-3 times the rated torque. And a peak torque time withstand is of about 2 minutes.
