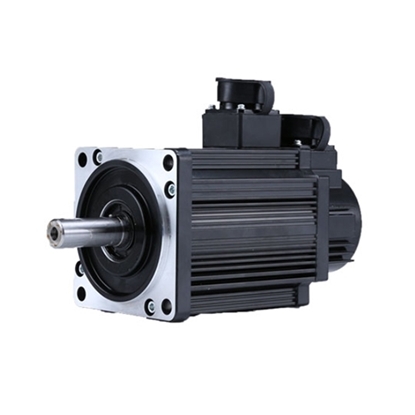

2 hp (1.5 kW) AC Servo Motor, 10Nm/25Nm, 1500 rpm

5 out of 5 based on 2 reviews | Write a review

$388.56

2 hp (1.5 kW) brushless servo motor with low rated speed of 1500 rpm, max speed up to 1800rpm, rated holding torque of 10 Nm, maximum output torque up to 25 Nm. Single or three phase 220V AC input, 2,500 PPR incremental encoder or absolute encoder attached, manufacturer direct sale.

SKU: ATO-SERVO-130S1500

Motor Encoder Type *
With Brake *
Matched Controller *

Qty:

Free shipping

Delivery date: 6-12 days

Overview
Servo Motors Manual
Related Video

1.5 kW power rated and low speed 1500 rpm AC servo motor, with a rated torque of 10Nm, max torque of 25Nm. It is available in flange sizes of 130mm square flange size, with brakes options available.
2 hp AC Servo Motor Specification

Basics	Model	ATO130SY-M10015
	Matched Drive Model	ATO-SG-AS302600
	Weight	10 Kg
	Rated Power	1500 W
	Rated Voltage	220V AC
	Rated Current	6 A
	Rated Speed	1500 rpm
	Max Speed	1800 rpm
	Rated Torque	10 N.m
	Peak Torque	25 N.m
	Rotor Inertia	1.94x10^-3KG.m^₂
Technical Parameters	Number of Pole Pairs	4
	Incremental Encoder Line	2500/5000PPR
	Absolute Encoder	17/33bit, 22/38bit, 23/39bit
	Structure	Plastic Packaging, Self-cooling
	Vibration	Under 2.5G
	Work System	Continuous
	Installation Method	Flange installation
	Insulation Class	Class B
	Insulation and Voltage Resistance	1500V AC, 1 Min
	Insulation Resistance	500V DC, 10Ω above
	Safety Class	IP65
	Warranty	12 months
Environment	Temperature	0℃ ~ +55℃
	Altitude	Under 1000m
	Humidity	<90%RH, (no dewing)

130mm Flange Size Servo Motor Installation Dimension (unit=mm)

Servo Motor without Brake Dimension

130 series servo motor dimension

L (Incremental/Absolute encoder): 212 mm

Servo Motor with Brake Dimension

130 series servo motor with brake dimension

L1 (with brake): 262 mm

Note:
*All above is the standard installation dimension, can be changed according to the customers' requirments.
*Not hit the shaft, or the encoder in the other end would be damaged.

Winding Connection Table

Winding Wire	U	V	W	PE	Braking Wiring	Brake	Brake
Socket Number	2	3	4	1	Socket Number	1	2
					Brake Voltage	24V DC

The Encoder Connection Table

Signal Definitions	5V	0V	A+	B+	Z+	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1
Absolute Signal Definitions		PE		GND		VB		SD-		GND 0V		SD		Vcc 5V
Socket Number		1		2		3		4		5		6		7

Tips: Tension reduction for servo motor cable

Ensure that cable is not subjected torque or vertical load due to external bending force or its own weight, especially at cable outlet or joint.
When servo motor is moving, fix the cable (just that line which is provided with motor) at a static part (use motor as reference) firmly and use an additional cable installed in cable holder for extension, which can minimize the bending tension.
Make the bend radius of cable be as large as possible.
