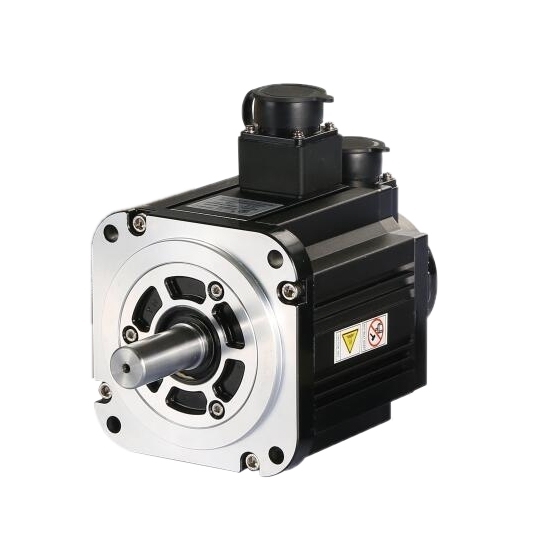

    2 hp (1.5 kW) AC Servo Motor, 10 Nm, 1500 rpm

    5 out of 5 based on 1 reviews | Write a review
    $708.56
    2 hp (1.5 kW) brushless AC servo motor with rated speed of 1500 rpm, max speed up to 1800 rpm, rated holding torque of 10 Nm, maximum output torque up to 25 Nm. Three phase 220V AC input, 2,500 PPR incremental encoder or absolute encoder attached, manufacturer direct sale.
    SKU: ATO-SERVO-130S1500
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    1500 watt AC servo motor, brushless design, 6 amps, 10 Nm rated torque, 1500 rpm low speed control. Powerful industrial servo motor is 130mm square flange size, with brakes options available.

    Specification

    Basics Model ATO130SY-M10015

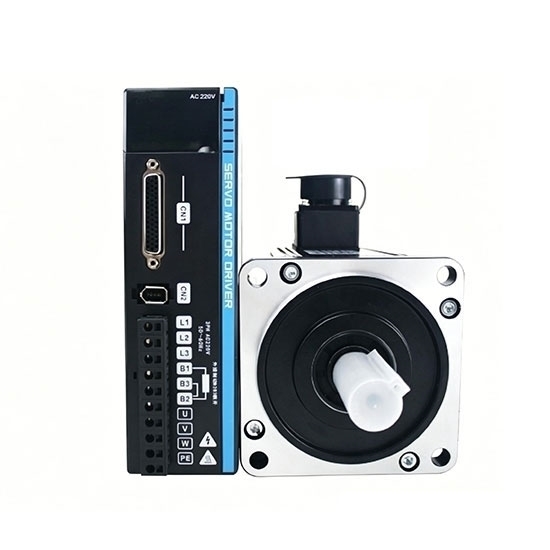

    Matched Drive Model ATO-SG-AS302600
    Square Flange Size 130 mm
    Rated Power 1.5 kW (2 hp)
    Rated Voltage Three phase 220V AC
    Rated Current 6 A
    Rated Speed 1500 rpm
    Max Speed 1800 rpm
    Rated Torque 10 Nm
    Peak Torque 25 Nm
    Rotor Inertia 1.94x10-3 KG.m2
    Weight 10 Kg
    Technical Parameters Number of Pole Pairs 4
    Brake Voltage 24V DC
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP65
    Warranty 12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Features

    • Accuracy: ATO AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
    • Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
    • Adaptability: ATO heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
    • Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
    • Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
    • Safety: ATO AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension

    130 series servo motor dimension

    L (Incremental/Absolute encoder): 212 mm

    Servo Motor with Brake Dimension

    130 series servo motor with brake dimension

    L1 (with brake): 262 mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding and Encoder Connection

    1. For servo motor winding

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number 2 3 4 1 Socket Number 1 2
    Brake Voltage 24V DC

    2. For incremental encoder

    Incremental Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

    3. For absolute encoder

    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Tension reduction for servo motor cable

    1. Ensure that cable is not subjected torque or vertical load due to external bending force or its own weight, especially at cable outlet or joint.
    2. When servo motor is moving, fix the cable (just that line which is provided with motor) at a static part (use motor as reference) firmly and use an additional cable installed in cable holder for extension, which can minimize the bending tension.
    3. Make the bend radius of cable be as large as possible.
