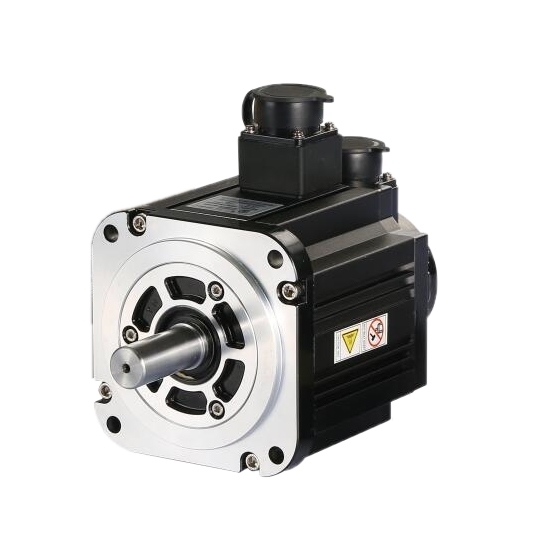

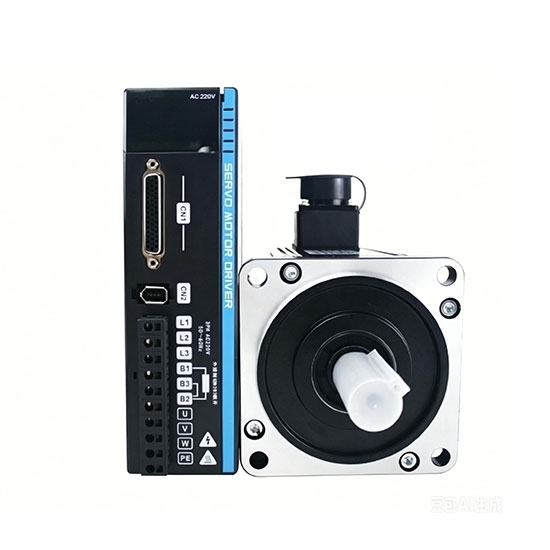

    1.3 kW AC Servo Motor, 5 Nm, 2500 rpm

    5 out of 5 based on 1 reviews | Write a review
    $708.23
    High precision 1.3 kW brushless servo motor, single or three phase 220V AC input, rated speed of 2500 rpm, rated torque of 5 Nm, 5 amps, maximum output torque up to 15 Nm. 130mm square flange size, with brakes and encoder options.
    SKU: ATO-SERVO-130S1300
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Good price 1.3 kW AC big servo motor, 5 Nm torque, 2500 rpm speed control, max speed of 2800 rpm, 2,500 PPR incremental encoder attached, IP65 for body, features enhanced durability in harsh industrial environments.

    Specification

    Basics Model ATO130SY-M05025

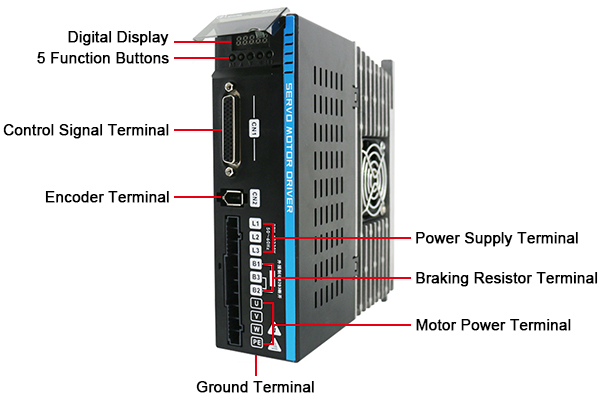

    Matched Drive Model ATO-SG-AS302600 (Click it to the product page)
    Square Flange Size 130 mm
    Rated Power 1300 W
    Rated Voltage Three phase 220V AC
    Rated Current 5 A
    Rated Speed 2500 rpm
    Max Speed 2800 rpm
    Rated Torque 5 Nm
    Peak Torque 15 Nm
    Rotor Inertia 1.20x10-3 KG.m2
    Weight 7 Kg
    Technical Parameters Number of Pole Pairs 4
    Brake Voltage 24V DC
    Incremental Encoder Line 2500/5000 PPR
    Absolute Encoder 17/33 bit, 22/38 bit, 23/39 bit
    Structure Plastic packaging, self-cooling
    Vibration Under 2.5G
    Work System Continuous
    Installation Method Flange installation
    Insulation Class Class B
    Insulation and Voltage Resistance 1500V AC, 1 Min
    Insulation Resistance 500V DC, 10Ω above
    Safety Class IP65
    Warranty 12 months
    Environment Temperature 0℃ ~ +55℃
    Altitude Under 1000m
    Humidity <90%RH, (no dewing)

    Features

    • Accuracy: ATO AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
    • Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
    • Adaptability: ATO heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
    • Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
    • Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
    • Safety: ATO AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

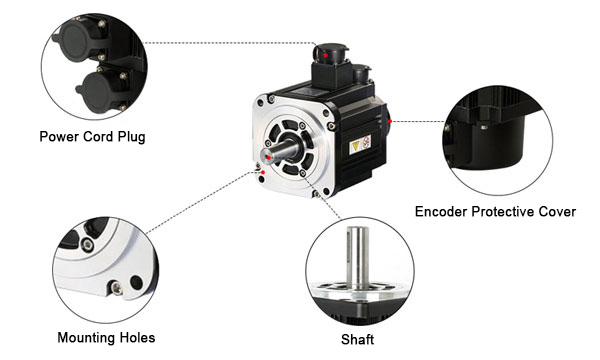

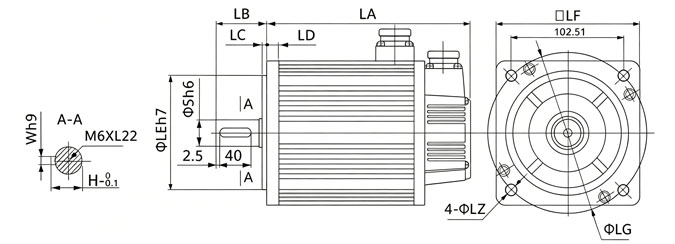

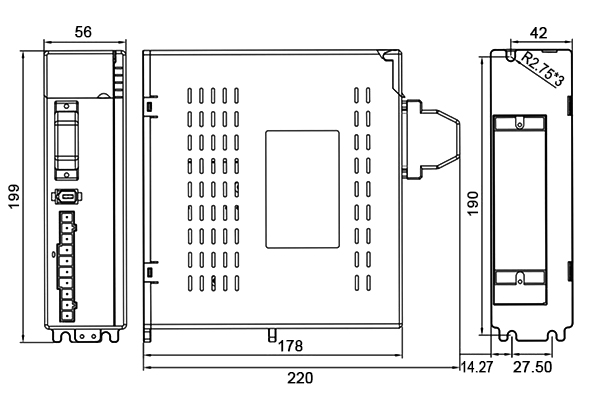

    Installation Dimension (unit=mm)

    Servo Motor without Brake Dimension

    130 series servo motor dimension

    L (Incremental/Absolute encoder): 175 mm

    Servo Motor with Brake Dimension

    130 series servo motor with brake dimension

    L1 (with brake): 225 mm

    Note:
    *All above is the standard installation dimension, can be changed according to the customers' requirments.
    *Not hit the shaft, or the encoder in the other end would be damaged.

    Winding and Encoder Connection

    1. For servo motor winding

    Winding Wire U V W PE Braking Wiring Brake Brake
    Socket Number 2 3 4 1 Socket Number 1 2
    Brake Voltage 24V DC

    2. For incremental encoder

    Incremental Signal Definitions 5V 0V A+ B+ Z+ A- B- Z- U+ V+ W+ U- V- W- PE
    Socket Number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

    3. For absolute encoder

    Absolute Signal Definitions PE GND VB SD- GND 0V SD Vcc 5V
    Socket Number 1 2 3 4 5 6 7

    Tips: Abnormal noise or shaking occurs when servo motor is running, how to solve?

    1. Servo wiring:
      a. Use the standard power cable, encoder cable and control cables and check if there is any damage in cables.
      b. Check if there is any interference source near the control wires and if the wires are parallel or too close to nearby high current power cables.
      c. Check if ground terminal potential has changed and ensure that grounding is in good condition.
    2. Servo parameter:
      a. Servo gain is set too large. It is suggested to use manual or automatic way to adjust servo parameter again.
      b. Confirm that time constant for speed feedback filter is set at 0 as initial value and attempt to increase the set value.
      c. Electronic gear ratio is set too large. It is suggested to restore the factory setting.
      d. The servo system resonates with the mechanical system. Attempt to adjust the frequency and amplitude of notch filter.
    3. Mechanical system:
      a. Deviation occurs in coupling connecting motor shaft and equipment system and mounting screws are not tightened firmly.
      b. Poor engagement of pulley or gear may also cause load torque change. Attempt to run without load. If the system operates normally without load, check if the engaged part of mechanical system has any abnormality.
      c. Confirm if load inertia, torque and speed are too large. Attempt to run without load. If the system operates normally without load, reduce the load or replace another driver and motor with large capacity.
