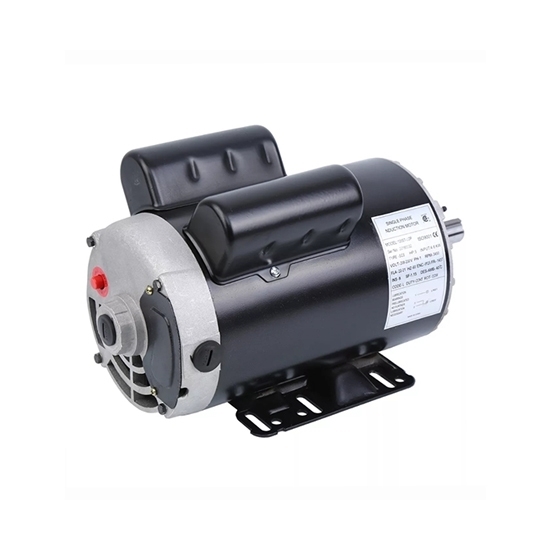

    2 hp (1.5 kW) Air Compressor Motor, 115/ 230V, 5/8" Shaft

    5 out of 5 based on 1 reviews | Write a review
    2 hp high-power air compressor motor has a single-phase motor, double capacitance and 115V/ 230V voltage, which can save energy in a long time, reduce energy costs or overhead. The shaft length is 1.88" and the shaft diameter is 5/8".
    30-day Returns
    Free Shipping
    Delivery date: 20-30 days

    15/ 7.5 A ac electric motor for air compressor has multiple heat dissipation holes, which can quickly dissipate heat during operation. It is designed with a protector and the protection grade is IP 2.


    Model ATO-CM02256
    Power 2 HP (1.5 kW)
    Speed 3600 rpm
    Current 15/ 7.5 A
    Voltage 115/ 230 V
    Frame 56
    Shaft diameter 5/8"
    Shaft length 1.88"
    Capacitance 2
    Frequency 60Hz
    IP 23
    INS F
    Housing material Steel plate
    Packing size 34*27*27cm
    Weight 17kg

    Dimention (Unit: inch)

    Dimension of ATO air compressor motor

    Frame E 2F H BA A B C D L J P G AA S ES R N-W U
    56 2.44 3 0.34 2.75 6.5 4 11.1 3.5 7.95 1.73 6.46 0.12 0.5 0.188 1.41 0.517 1.88 0.625



    1500W Air Compressor Motor Details

    Tips: Precautions for using high-power air compressor motor

    High-power air compressor motors are important equipment in the air separation industry. The power is large and the operation and startup steps are complicated. When the high-power air compressor motor starts, in order to provide a large enough starting current for the high-power air compressor motor, many departments of the enterprise will choose to shut down. Therefore, the restart of the high-power air compressor motor will bring huge economic losses to the enterprise. The fault diagnosis and control of the high-power air compressor motor and the improvement of the reliability of the equipment itself will bring huge economic benefits to the enterprise.

    In order to ensure the safe operation of high-power air compressor motor equipment, a lot of monitoring and control points are set up to complete its protection. The selection of monitoring and control points for different types of air compressor motors should be different. The control of key points can protect the air compressor motor. However, the control of some non-critical points not only increases the burden on the system, but also Bring a negative impact on the economic benefits of the enterprise. Therefore, it is optimized in the air compressor motor detection control system, and the air compressor motor is controlled with the least number of points.

    While safely protecting the motor equipment of the air compressor, timely feedback of abnormal information is also very important. In the high-power air compressor motor control, the conventional instrument control has a relatively high failure rate, and the connection between the parameter points is not close. Misoperation often occurs, and a stop signal is issued when it should not be stopped, which has a huge impact on the production of the enterprise. The fault diagnosis and control of the high-power air compressor motor should be based on the principles of systemicity, reliability, real-time, and economy, to maximize the system optimization, and automatically adjust the compressor working conditions as much as possible.

    Existing reviews of 2 hp (1.5 kW) Air Compressor Motor, 115/ 230V, 5/8" Shaft
    Nice 1.5kW compressor motor for the price!
    We installed this on an older bandsaw, and were looking for an inexpensive 2hp air compressor motor. I think it’s a good motor for the price, and was not looking for a top-of-the-line unit. Installation was easy, and the motor runs fine.
