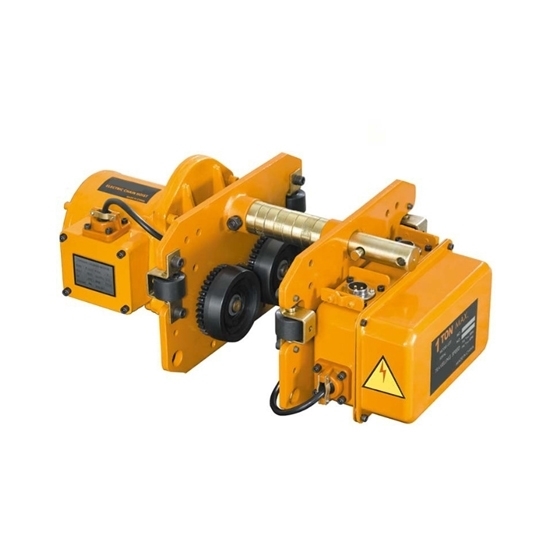

    2 Ton Electric Beam Trolley

    Electric beam trolley comes with 2 ton load capacity, running speed 11~21 m/min, motor voltage 380V or 110V, motor power 0.4 KW, min. turning radius 1.5, applicable I-beams 82~178mm. This beam trolley for electric chain hoist consists of a motorized unit equipped with wheels that travel along the beam, allowing for smooth and controlled horizontal motion.
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    2 ton electric beam trolleys find extensive applications in warehouses, manufacturing plants, construction sites, and other environments where lifting and transferring heavy loads are required. They enhance productivity, reduce manual labor, and provide a cost-effective solution for material handling operations.


    • Model: ATO-HX-02
    • Load Capacity: 2 Ton
    • Running Speed: 11~21 m/min
    • Motor Voltage: 380V/ 110V
    • Motor Power: 0.4 KW
    • Minimum Turning Radius: 1.5
    • Applicable I-beams: 82~178mm


    Electric beam trolley dimensions

    A B R T
    325mm 217mm 142mm 231mm

    Tips: Can you side load a beam trolley?

    Side loading a beam trolley is generally not recommended due to safety concerns and potential risks. Beam trolleys are designed to move along a beam or track in a specific manner, typically by rolling on wheels or bearings. They are designed to handle loads vertically and in line with the direction of travel.

    Side loading refers to applying a load perpendicular to the intended direction of travel, which can put excessive stress on the trolley and compromise its stability. This can lead to accidents, equipment failure, and potential injuries.

    To ensure safety and optimal performance, it is essential to use beam trolleys as intended, following the manufacturer's guidelines and specifications. If a specific application requires moving loads in a direction perpendicular to the beam or track, alternative equipment or solutions designed for that purpose should be considered, such as cranes or other specialized material handling devices.

    Always prioritize safety and consult with experts or professionals familiar with the specific equipment and application requirements to ensure proper usage and minimize risks.
