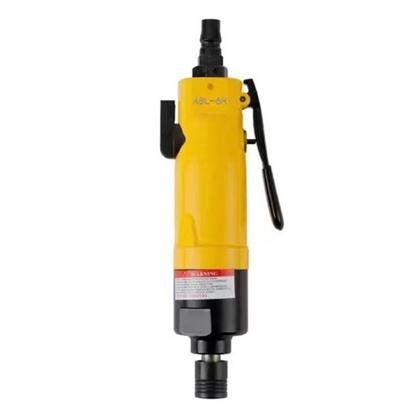

200 Nm Pneumatic Screw Driver, 1/4", 12000 rpm

Adjustable air screwdriver with 1/4 inch air interface, maximum torque 200 Nm, no-load speed up to 12000 rpm. Air torque screwdriver with self-locking chuck, safe and stable, one pull and one release, easily change the drill bit.

Specification

Features

• The inline pneumatic screw driver has a built-in powerful movement, which can withstand high-speed rotation, work continuously for 24 hours, and adapt to high-intensity operations.
• High concentricity, precise and no deviation, attack, and demolition in one step.
• The standard 6.35mm self-locking chuck is safe and stable, and the drill bit can be easily changed with one pull and one release.
• Forward and reverse switch, R gear to drive the screw, L gear to back the screw, no rotation in the middle, easy to operate.
• The pneumatic torque screwdriver has three gears for speed adjustment, which can adjust the required torque value according to different working environments and improve work efficiency.
• The ATO pneumatic screwdriver conforms to the ergonomic structure, which is comfortable to use and will not feel tired after working for a long time.

Dimension Unit (mm)

Applications

Tips: How does a pneumatic screwdriver work?

A pneumatic screwdriver is a pneumatic tool suitable for tightening or disassembling bolts and nuts suitable for industrial assembly. The shell of the pneumatic screwdriver is mostly made of metal and has better anti-static performance. The pneumatic screwdriver compresses the air through the air compressor, and the air pressure drives the blades in the motor in the air batch, and then the blades drive the rotor, which drives the rotor to drive the screwdriver, and the screwdriver drives the screw to rotate to loosen or tighten the screw and the nut.
