20A 100V 2000W Variable Linear DC Power Supply

$1,792.06
Low price 2000W power rating variable linear DC power supply with 3 digit LED display, designed to regulate adjustable 0 to 20 amp and 0 to 100 volt outputs. Features high accuracy, low ripple, low noise, can be used in dual input voltage 110V or 220V AC (+/- 10%).
*
SKU: ATO-DCPS10020
30-day Returns
Free Shipping
Delivery date: 6-12 days

Adjustable linear DC power supplies often incorporate digital control interfaces, facilitating precise adjustments with user-friendly interfaces. Users can effortlessly set desired voltage levels and control amperage with accuracy, granting flexibility in powering diverse circuits or components.

Specification

Model ATO-JK10020S
Input Voltage 110V or 220V AC (+/- 10%)
Output Voltage Range DC 0-100V
Output Current Range 0-20A
Output Power 2000W
Frequency 50Hz/60Hz
Output Type Dual
Display 3 digit
Display Accuracy ≤ ±0.1%+2d
Voltage Display Resolution 100mV
Current Display Resolution 10mA
Efficiency >65%
Voltage Regulation
Load Regulation (CV) 1×10-5+8mV
Line Regulation (CV) 1×10-5+3mV
Ripple & Noise (P-P) 0.5mV
Temperature Coefficient 300PPm/℃
Current Regulation
Load Regulation (CC) ≤5mA
Line Regulation (CC) 2×10-5+3mA
Temperature Coefficient 500PPm/℃
Others
Protection Over Load and Over Voltage Protection
Recovery Time ≤100µs
Operating Ambient 0℃ to + 40℃/ 85%RH
Storage Ambient -10℃ to + 80℃/ 80%RH
Warranty 12 Months
Size 530 (L) x 430 (W) x 200 (H) mm
Weight 45kg


Detail

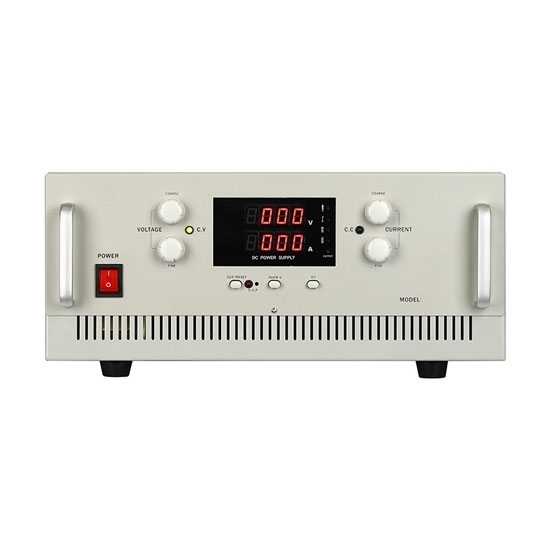

Details of 20A 100V Adjustable Linear DC Power Supply

Details of 20A 100V Variable Linear DC Power Supply

Tips: Can I connect multiple devices to a single variable linear DC power supply?

Yes, you can connect multiple devices to a single variable linear DC power supply by using a power distribution system like a terminal strip or a power distribution block. Ensure that the total current drawn by all connected devices does not exceed the power supply's maximum current rating. Connect the positive terminals of each device to the positive output of the power supply and the negative terminals to the negative output. Pay attention to voltage requirements, ensuring they match the power supply's capabilities. If devices have different voltage requirements, consider using voltage regulators or separate power supplies for those with distinct needs. Be cautious not to overload the power supply to prevent potential damage.
