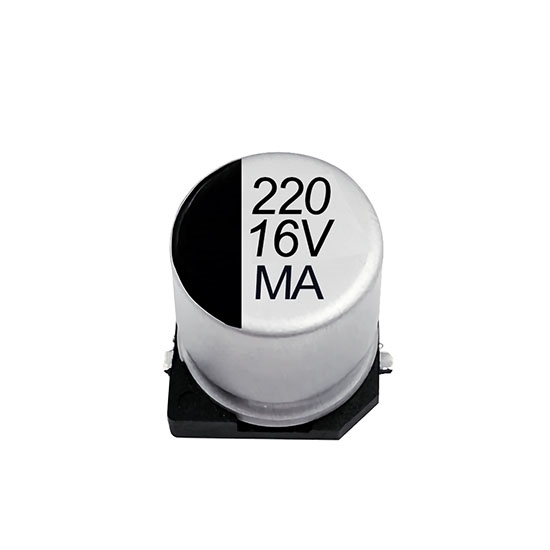

    220μF 16V SMD Electrolytic Capacitor

    Low price SMD electrolytic capacitor with 220μF capatity, rated voltage 16V for sale online. 220μF 16V SMD aluminum electrolytic capacitor with ±20% cap. tolerance, 20% dissipation factor, operating temperature -55~105℃. SMD non polarized capacitors are used in various electronic products with compact structure, small volume and high precision.
    SKU: ATO-EC-HV221M
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High quality surface mount electrolytic capacitor has high ripple current, surface mount installation type. Power capacitor providing good electrical performance, wide application range and high reliability.


    • Endurance: 105℃ - 2000 hours
    • Low ESR and high ripple current
    • Vibration-proof (vP) version (up to 30g) available upon request
    • AEC-Q200 version available
    • High voltage, automotive 105°C type


    Model ATO-EC-HV221M
    Capacity 220㎌
    Rated voltage 16V
    Size 6.3*7.7 mm
    Installation type Surface mount
    Operating temperature -55~105℃
    Cap. tolerance (C) ±20% (120Hz 20℃)
    Dissipation factor (tanδ) 20%
    Low temperature characteristic at 120Hz (Z ratio max.) 3 (Z-25℃/Z+20℃)
    Leakage current (Lleak) 0.01*CR*Vor 3  * after 2 minutes
    Enduarance (105℃) Test 2000h
    ∆C 20% of initial measured value
    tanδ ≤200% of specified measured value
    Lleak ≤ the specified measured value
    Shelf life (105℃) Test 1000h
    ∆C 20% of initial measured value
    tanδ ≤200% of specified measured value
    Lleak ≤ the specified measured value
    Resistance to soldering heat (105℃) ∆C Within ±10% of initial value
    tanδ Less than specified value
    Lleak Less than specified value

    Dimension (mm)

    SMD electrolytic capacitor dimension

    Model Dimension (mm)
    ATO-EC-HV221M ∅D 6.3
    L 7.7
    a Max
    A 6.6
    B 6.6
    C 7.2
    W 0.5~0.8
    P±2 2.2

    Tips:  Features of SMD Electrolytic Capacitor.

    1. The SMD aluminum electrolytic capacitor and the bottom plate are welded with tin, and the bottom of the capacitor and the bottom plate are tightly attached without any gap at all;
    2. There are no solder joints on the back of the circuit board, so there is no possibility of short circuits. On the other hand, SMD electrolytic capacitors are higher than plug-in capacitors in terms of components selected and production process costs.
