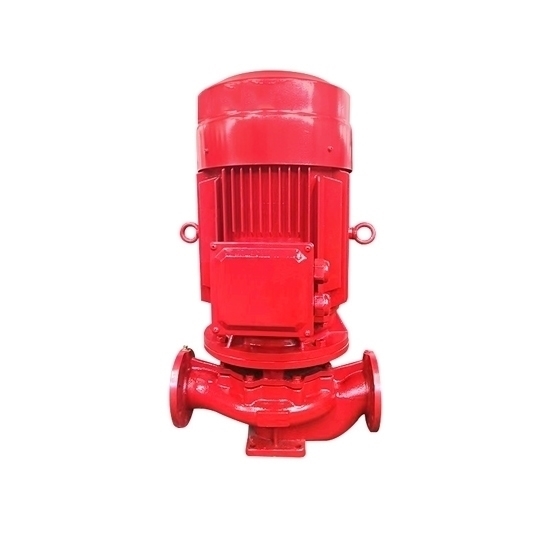

25 HP (18.5 kW) Fire Pump, Single Stage

Fire pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline. Firefighting pump widely used in fire fighting water supply and garden irrigation. A 25 hp vertical fire pump is a high-powered device used in fire protection systems to provide a strong, reliable water supply for firefighting purposes.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: ATO-XBD9.0/5G-65-315B
• Power: 25 hp (18.5 kW)
• Number of Stage: single stage
• Voltage: 380V (other voltage, please contact us)
• Caliber: 65 mm
• Flow Rate: 15.7m³/h
• Head of Pump: 103m
• Rotating Speed: 2900 r/min
• Net Weight: 225kg

Structure:

Tips: Advantages of Fire Pump

• Increased water pressure. Fire pumps can increase water pressure to fight fires effectively. They are designed to provide an adequate supply of water to the sprinkler systems or standpipe systems of a building.
• Enhanced safety. Fire pumps are critical components of fire protection systems, providing a reliable source of water in case of emergencies. They help ensure the safety of building occupants by reducing the risk of fire-related injuries and fatalities.
• Reliable operation. Fire pumps are designed to operate reliably, providing consistent performance even in extreme conditions. They are regularly maintained to ensure they are always ready to perform when needed.
