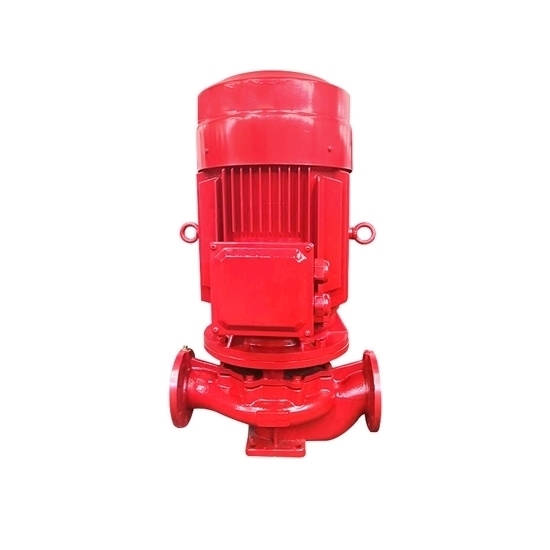

20 HP (15 kW) Fire Pump, Single Stage

The fire fighting pump uses thickened heat dissipation net cover, hollow out design makes the heat dissipation efficiency is high. A 20 hp (15 kW) fire pump can deliver substantial water flow, making it suitable for large commercial or industrial facilities.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: ATO-XBD3.0/20G-100-160
• Power: 20 hp (15 kW)
• Number of Stage: single stage
• Voltage: 380V (other voltage, please contact us)
• Caliber: 100 mm
• Flow Rate: 70m³/h
• Head of Pump: 36.5m
• Rotating Speed: 2900 r/min
• Net Weight: 191kg

Structure:

Tips: What are the Starting Modes of Fire Pump?

• Electric Start. This mode is initiated by a switch or a control panel that sends an electrical signal to start the motor and the fire pump. This mode is commonly used for stationary fire pumps that are connected to a power source.
• Diesel Start. This mode is initiated by a diesel engine that drives the pump. This mode is commonly used for portable fire pumps that need to be transported to the location of the fire. The diesel engine can be started manually or automatically by a control panel.
