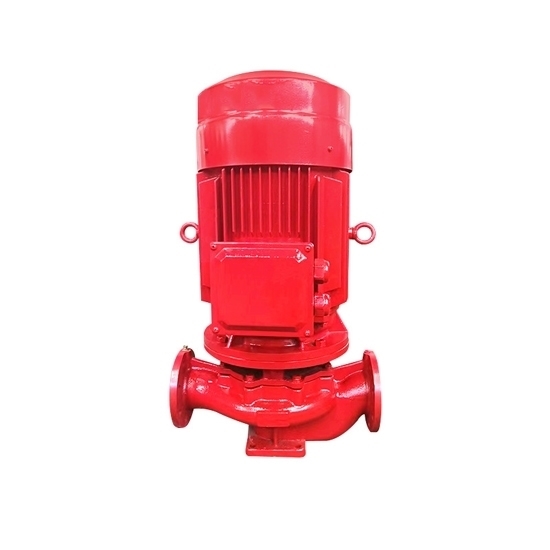

7.5 HP (5.5 kW) Fire Pump, Single Stage

The fire pump is compact and small in size. Its vertical structure determines the installation area is small. 7.5 hp fire pump consists of motor and pump two parts. It designed to deliver water at high pressure to combat fires.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: XBD5.0/3G-50-200
• Power: 7.5 hp (5.5 kW)
• Number of Stage: single stage
• Voltage: 380V
• Caliber: 50 mm
• Flow Rate: 3 L/s
• Head of Pump: 50m
• Rotational Speed: 2900 r/min

Structure:

Tips: How to Maintain Fire Pump?

• Schedule regular inspections and maintenance checks to ensure the fire pump is in good working condition.
• Keep the fire pump room clean and free of debris.
• Make sure the fire pump's electrical components are properly grounded and maintained.
• Regularly test the fire pump to ensure it is operating correctly.
• Check the pump's alignment, bearings, and impeller regularly.
• Keep a record of maintenance and repairs for future reference.
• Ensure that the fire pump is free of leaks, rust, and corrosion.
• Have a backup fire pump system in place in case the primary pump fails.
