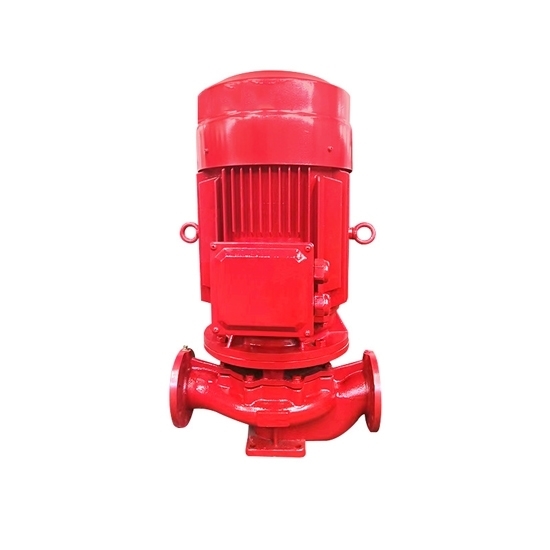

3 HP (2.2 kW) Fire Pump, Single Stage

Fire fighting pump import and export along the same horizontal axis. Fire pump using mechanical seal, with no leakage characteristics.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: XBD4.0/1G-40-200B
• Power: 3 hp (2.2 kW)
• Number of Stage: single stage
• Voltage: 380V
• Caliber: 40 mm
• Flow Rate: 1 L/s
• Head of Pump: 40m
• Rotational Speed: 2900 r/min

Structure:

Tips: How to Use Fire Pump?

• Make sure the pump is adequately primed with water before starting it.
• Start the fire pump by turning on the motor or engine, following the manufacturer's instructions.
• Open the discharge valve gradually, allowing the water pressure to build up slowly. This helps to prevent water hammer and damage to the piping system.
• Monitor the water pressure and flow rate using pressure gauges and flow meters to ensure that they are within the recommended range for the fire protection system.
• If necessary, adjust the throttle or speed of the engine or motor to maintain the correct water pressure and flow rate.
• Shut off the fire pump and close the discharge valve once the fire is extinguished or the emergency is over.
