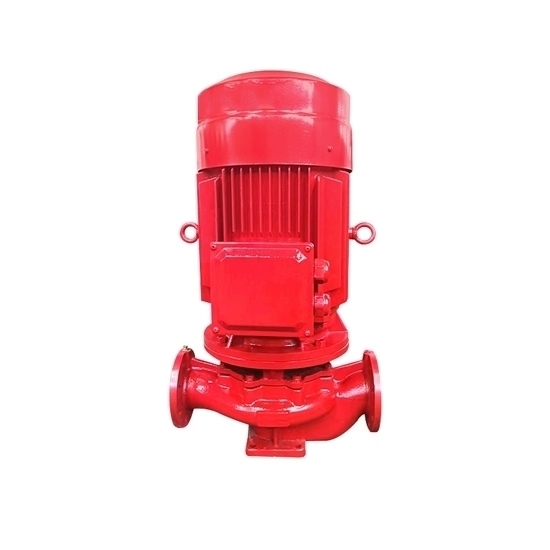

30 HP (22 kW) Fire Pump, Single Stage

The caliber of the emergency fire pump is 65 mm and the rotational speed up to 2900 r/min. Centrifugal fire water pump adopts low noise bearing, smooth and durable in use. With 30 horsepower, this fire fighting water pump can deliver a substantial volume of water at high pressure, making it suitable for large buildings, industrial facilities, or areas requiring significant fire protection.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: ATO-XBD11.0/5G-65-315A
• Power: 30 hp (22 kW)
• Number of Stage: single stage
• Voltage: 380V (other voltage, please contact us)
• Caliber: 65 mm
• Flow Rate: 16.6m³/h
• Head of Pump: 115m
• Rotating Speed: 2900 r/min
• Net Weight: 255kg

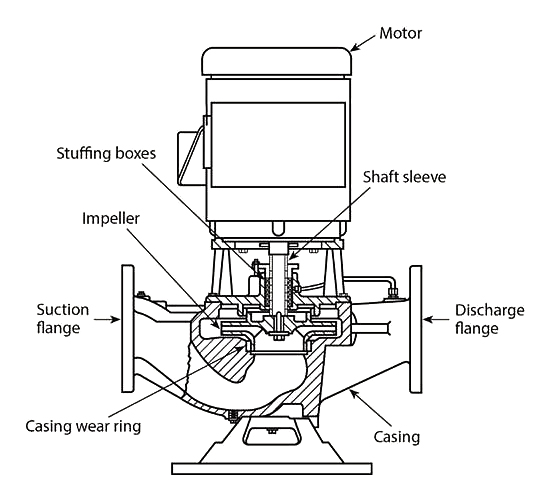

Structure:

Tips: What Should Pay Attention to When Setting Fire Pump?

• Flow rate. The fire pump should be capable of delivering the required flow rate of water to the fire suppression system.
• Pressure. The fire pump should provide adequate pressure to ensure that the water reaches all parts of the fire suppression system.
• Suction pressure. The suction pressure should be sufficient to ensure that the fire pump can draw water from the water supply.
• Capacity. The fire pump should have enough capacity to supply water to all the fire sprinklers and other fire suppression devices.
• Power source. The fire pump should be connected to a reliable power source that can provide the required voltage and amperage.
• Control System. The fire pump should have a reliable control system that can automatically start and stop the pump in case of fire.
