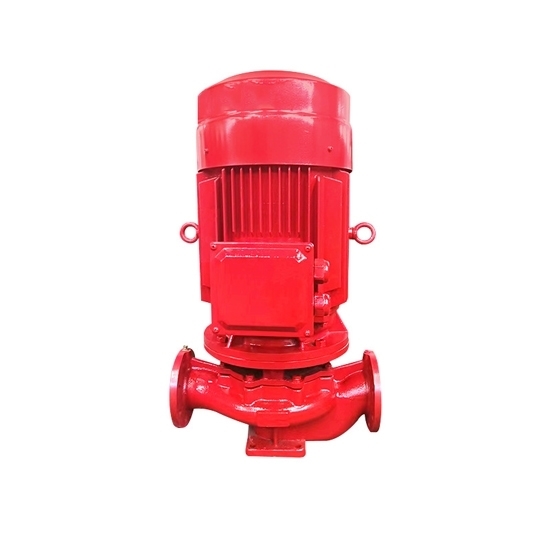

2 HP (1.5 kW) Fire Pump, Single Stage

2 hp fire pump consists of motor and pump two parts. Fire fighting pump is equipped with a mounting base, easy to install, increase the stability of the pump operation.

Features:

• Fire pump is compact in structure and small in size.
• Pump inlet and outlet are horizontal direction, simplifying the connection of the pipeline.
• Pump rotor has small winding, stable operation, small vibration, long service life.

Specification:

• Model: XBD3.0/1G-32-160
• Power: 2 hp (1.5 kW)
• Number of Stage: single stage
• Voltage: 380V
• Caliber: 32 mm
• Flow Rate: 1 L/s
• Head of Pump: 30m
• Rotational Speed: 2900 r/min

Structure:

Tips: What is Fire Pump?

A fire pump is a specialized device that is used to increase water pressure and flow rate in a fire protection system, such as a sprinkler system or standpipe system, to ensure adequate water supply in the event of a fire. Fire pumps are typically powered by electric motors or diesel engines and are designed to deliver a specific amount of water at a specific pressure to the fire protection system. Fire fighting pumps are typically designed to deliver a high volume of water at a high pressure, and they are often installed in commercial or industrial buildings, as well as in high-rise residential buildings.
